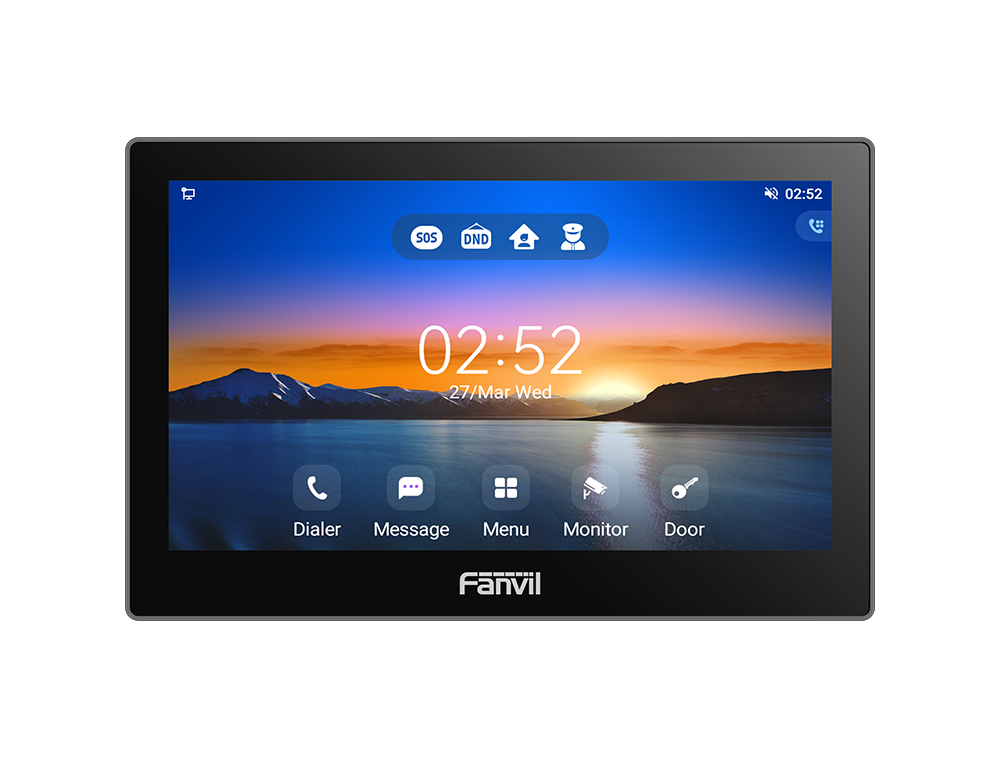

Fanvil i504W SIP Indoor Station

Fanvil i504W SIP Indoor Station

The Fanvil i504W SIP Indoor Station is a wall-mounted communication panel for residential and commercial entrance systems. It features a 7-inch touchscreen, dual-band Wi-Fi, two-way intercom, and remote door control. Therefore, residents and authorised staff can communicate with visitors and manage entry from one clear interface. It suits apartments, villas, hotels, and office buildings.

Clear Touchscreen Operation

The 7-inch colour touchscreen offers a 1024 × 600-pixel resolution. As a result, users can view visitors, access contacts, check call records, and operate configured functions without physical keys.

Moreover, administrators can customise the background, startup logo, screen saver, and greeting message. These options help the device match the property’s preferred interface and communication needs.

Flexible Network Connectivity

The i504W supports dual-band 2.4GHz and 5GHz Wi-Fi. Therefore, installers can connect it to a suitable wireless network where Ethernet cabling is inconvenient.

A 10/100Mbps Ethernet port also supports wired networking and PoE. Consequently, compatible network equipment can carry data and electrical power through one cable. Alternatively, installers can use the 12V DC, 1A power input.

Key Features

• Features a 7-inch colour touchscreen with 1024 × 600 resolution.
• Supports dual-band 2.4GHz and 5GHz Wi-Fi.
• Provides 10/100Mbps Ethernet for wired network connections.
• Supports PoE or a 12V DC, 1A power supply.
• Enables two-way audio and video communication with compatible door phones.
• Displays video from linked access devices and IP cameras.
• Supports remote door release during calls or from standby mode.
• Includes eight alarm inputs for compatible security sensors.
• Provides one doorbell input and one short-circuit output.
• Supports local and cloud-based phonebooks.
• Provides call logs, Do Not Disturb, voicemail, and messaging functions.
• Allows custom backgrounds, screen savers, startup logos, and ringtones.
• Supports wall mounting on several common junction-box formats.

Intercom and Video Monitoring

The Fanvil i504W SIP Indoor Station receives audio or video calls from compatible SIP door phones. Users can view the visitor and hold a hands-free conversation. In addition, the full-duplex audio design allows both parties to speak naturally.

Users can also monitor configured door phones and authorised IP cameras. Therefore, they can check selected entrances without waiting for an incoming call. Video linkage can automatically display a linked camera when a configured device calls.

Door and Alarm Integration

Remote unlocking allows an authorised user to release a connected door during a call. The function can also operate from standby when correctly configured. However, the complete solution requires compatible locking hardware and a suitable access-control setup.

Eight alarm inputs support devices such as door contacts, infrared sensors, switches, or vibration sensors. Furthermore, one short-circuit output can connect to suitable locks or alarm equipment. A dedicated doorbell input supports an external doorbell button.

Technical Specifications

• Brand: Fanvil
• Model: i504W
• Product type: SIP indoor station
• Display: 7-inch colour touchscreen
• Resolution: 1024 × 600 pixels
• Speaker: Built-in 2W speaker
• Audio mode: Full-duplex hands-free communication
• Wi-Fi: Dual-band 2.4GHz and 5GHz
• Ethernet: One 10/100Mbps RJ45 port
• Alarm inputs: Eight
• Doorbell input: One
• Short-circuit output: One
• RS-485 interface: One reserved interface
• Power options: PoE or 12V DC, 1A
• Installation: Wall mounted
• Dimensions: 177.38 × 113.99 × 22.5mm
• Operating temperature: -10°C to 50°C
• Housing material: ABS

Suitable Applications

Residential communities can install the station inside apartments for visitor communication and door management. Likewise, villas can use it as a central indoor panel for an entrance door phone.

Hotels and office buildings can place it at authorised indoor points. Staff can then receive visitor calls, monitor configured entrances, and control compatible doors. Overall, the Fanvil i504W SIP Indoor Station provides practical intercom and security integration without requiring Android applications.

Frequently Asked Questions

How does the i504W differ from the i504?

The i504W includes dual-band 2.4GHz and 5GHz Wi-Fi. The standard i504 uses wired Ethernet without built-in Wi-Fi. Both versions support Ethernet, PoE, the 7-inch touchscreen, alarm interfaces, and wall mounting.

Which sensors can connect to the alarm inputs?

The eight inputs support compatible switching devices selected during system design. Common examples include door contacts, infrared sensors, indoor switches, and vibration sensors. An installer should confirm each device’s electrical requirements before connection.

How can users unlock a connected door?

Users can activate a configured door-release control during an intercom call or from the standby interface. The command operates through the connected access system. Therefore, compatible locks, controllers, and correct configuration remain necessary.

Can the i504W display more than a door-phone camera?

The monitoring function can display video from configured door phones and authorised IP cameras. Video linkage can also show a selected camera during an incoming call. Compatibility and access permissions depend on the project configuration.
