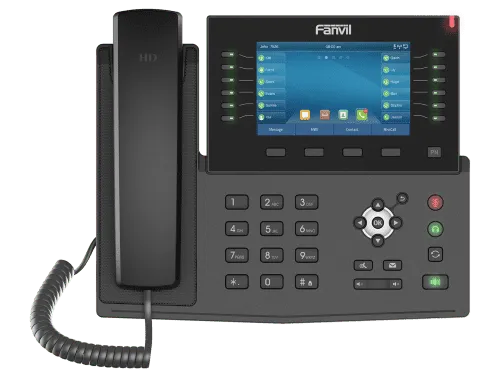

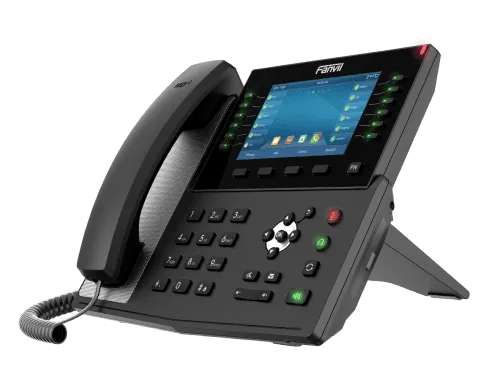

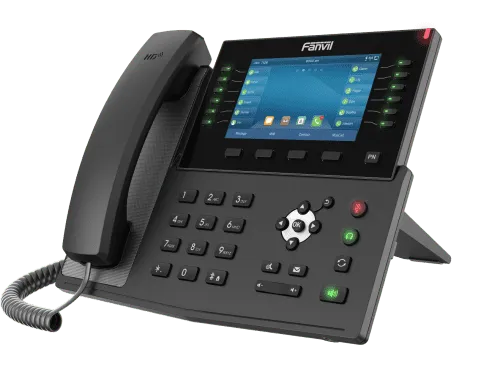

Fanvil X7C Enterprise IP Phone

Fanvil X7C Enterprise IP Phone

The Fanvil X7C Enterprise IP Phone is a high-end communication solution for managers, executives, and busy office teams. It combines a clear colour display with flexible call controls and HD audio. Moreover, it supports 20 SIP lines for handling many business calls. Its modern desktop design also gives users quick access to contacts, call records, functions, and line information.

Product Overview

The 5-inch colour screen has an 800 × 480 resolution. Therefore, menus, contact details, and call information appear clear and easy to read. The adjustable stand also supports 40-degree and 50-degree viewing angles. As a result, users can choose a comfortable position for daily work.

This Fanvil enterprise desk phone includes 12 physical DSS keys with tri-colour LEDs. In addition, a page-switch key expands access to 60 DSS entries. Users can assign these keys to extensions, speed dialling, call pickup, or other supported functions. Therefore, common tasks require fewer steps during busy periods.

Key Features

• 20 SIP lines: Manage several accounts, departments, or call routes from one phone.

• 5-inch colour display: View contacts, menus, line status, and call details on the 800 × 480 screen.

• HD audio: Enjoy clear sound through the handset or full-duplex speakerphone.

• Opus and G.722 support: Maintain natural voice quality across supported networks.

• 60 DSS entries: Access up to 60 assigned functions through 12 physical DSS keys and page switching.

• Bluetooth 4.2: Connect a compatible Bluetooth headset for greater movement at the desk.

• Optional Wi-Fi access: Add Wi-Fi connectivity through a supported USB Wi-Fi dongle.

• Dual Gigabit Ethernet: Connect the phone and a nearby computer through 10/100/1000 Mbps ports.

• Integrated PoE: Carry power and network data through one Ethernet cable when used with a compatible PoE source.

• Six-way conferencing: Bring several participants together on one supported business call.

• Video call reception: Receive H.264 video calls at supported resolutions, including up to 1080p.

• USB expansion: Connect a supported Wi-Fi dongle, USB flash drive, or optional Fanvil CM60 camera.

• Flexible call tools: Use hold, transfer, forwarding, intercom, redial, call waiting, and Do Not Disturb.

• Large phonebook: Store up to 2,000 local contacts and access up to 2,000 remote XML or LDAP entries.

Technical Specifications

• Product: Fanvil X7C Enterprise IP Phone

• Brand: Fanvil

• Model: X7C V2

• SIP lines: 20

• Display: 5-inch colour LCD, 800 × 480 resolution

• DSS capacity: Up to 60 entries with 12 physical DSS keys

• Conference calling: Six-way conference support

• Ethernet ports: Two RJ45 10/100/1000 Mbps ports

• PoE: Supported

• External power input: 5V DC, 2A

• Power adapter: Optional and not listed as included

• Bluetooth: Built-in Bluetooth 4.2

• Wi-Fi: Supported through a compatible USB Wi-Fi dongle

• USB port: One USB 2.0 Type-A port

• Audio codecs: Opus, G.722, G.711a/u, G.723.1, G.726, G.729AB, and iLBC

• Video codec: H.264 for receiving video calls

• Network support: IPv4, IPv6, DHCP, static IP, PPPoE, VLAN, LLDP, QoS, and 802.1X

• Voice security: SIP over TLS and SRTP support

• Phonebook capacity: 2,000 local and 2,000 remote entries

• Call log capacity: 1,000 incoming, outgoing, and missed records

• Desk dimensions at angle one: 268 × 185 × 189 mm

• Desk dimensions at angle two: 268 × 201 × 168 mm

• Operating temperature: 0°C to 45°C

• Operating humidity: 10% to 95%

• Installation: Desktop stand

• Colour: Black

• Warranty: To be confirmed by the seller

• Certifications: To be confirmed

Why Choose This IP Phone?

The Fanvil X7C Enterprise IP Phone brings key communication tools into one organised desktop device. For example, its large display makes menus easier to follow. Meanwhile, the DSS keys provide fast access to regular call actions. The dual Gigabit ports also suit offices with high-speed wired networks.

Moreover, PoE can reduce cable clutter around the desk. Bluetooth headset support offers added convenience, while optional Wi-Fi provides another connection method. Therefore, the phone can adapt to different office layouts. Its contact capacity, six-way conferencing, and call controls also support demanding professional roles.

Choose this Fanvil business IP telephone for clear audio, flexible call control, Gigabit networking, and easy access to key information. It suits executives, reception areas, and busy office teams. Add it to your cart or contact us for help confirming PBX compatibility and available accessories.
