Fanvil i505W Android Indoor Station

Fanvil i505W Android Indoor Station

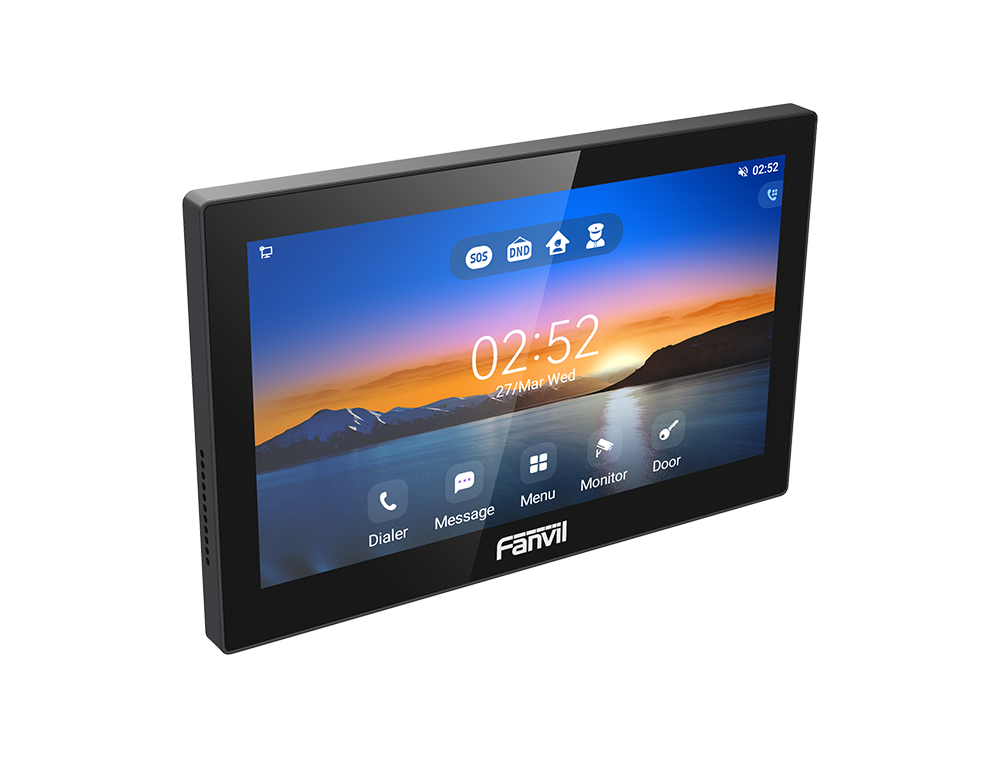

The Fanvil i505W Android Indoor Station is a wall-mounted communication and access-control panel for modern buildings. It features a 7-inch IPS touchscreen, Android 9.0, dual-band Wi-Fi, and two-way SIP communication. Therefore, residents and staff can view visitors, answer calls, and release connected doors from one clear interface. It suits apartments, villas, hotels, and office buildings.

Product Overview

The 7-inch capacitive touchscreen has a resolution of 1024 × 600 pixels. As a result, users can view door-phone video and access essential controls without navigating a complicated keypad. The IPS panel also provides a clear interface for calls, messages, alarms, and compatible applications.

Android 9.0 supports third-party application integration and secondary development. Therefore, system integrators can adapt the station to suitable building communication requirements. However, application support depends on system compatibility and the project configuration.

The i505W connects through dual-band 2.4GHz and 5GHz Wi-Fi. In addition, it includes a 10/100Mbps Ethernet port for wired networking. Installers can power it through IEEE 802.3af PoE or a 12V DC, 1A supply.

Key Features

• Features a 7-inch IPS colour capacitive touchscreen.
• Provides a 1024 × 600-pixel display resolution.
• Runs Android 9.0 for compatible application integration.
• Supports two-way SIP intercom communication.
• Connects through dual-band 2.4GHz and 5GHz Wi-Fi.
• Includes a 10/100Mbps Ethernet network port.
• Displays live video from linked door phones and IP cameras.
• Supports H.264 video decoding and optional H.265 decoding.
• Provides remote door unlocking through a compatible access system.
• Includes eight alarm inputs for connecting suitable sensors.
• Offers one short-circuit output and one doorbell input.
• Uses a built-in 2W multimedia speaker.
• Supports full-duplex hands-free audio with echo cancellation.
• Receives power through IEEE 802.3af PoE or 12V DC.
• Supports wall mounting for a neat indoor installation.

Communication and Door Access

The Fanvil i505W Android Indoor Station uses SIP 2.0 over UDP, TCP, or TLS. Consequently, it can communicate with compatible SIP door phones and building systems. Residents can answer visitor calls and hold two-way conversations through its hands-free speaker.

The station supports H.264 video decoding at resolutions up to 1080p. Optional H.265 decoding is also available. Therefore, users can view video from linked door phones before deciding whether to grant access.

A remote unlocking function allows users to release a connected door from the touchscreen. However, the complete system requires compatible door hardware and correct access-control configuration. The station does not secure or release a door independently.

Alarm and Security Integration

Eight alarm inputs allow installers to connect compatible security sensors. For example, a system may include door contacts, emergency buttons, or other supported alarm devices. The station also provides one short-circuit output and one dedicated doorbell input.

Furthermore, users can view live feeds from linked IP cameras. This feature provides additional visual information from selected areas within the authorised system. However, camera compatibility, network design, and access permissions must be confirmed during installation.

Technical Specifications

• Brand: Fanvil
• Model: i505W
• Product type: Android indoor station
• Operating system: Android 9.0
• Display: 7-inch IPS colour capacitive touchscreen
• Resolution: 1024 × 600 pixels
• Speaker: Built-in 2W multimedia speaker
• Audio mode: Full-duplex hands-free communication
• Wideband codecs: G.722 and Opus
• Video decoding: H.264 and optional H.265
• Video resolution support: QVGA, CIF, VGA, 4CIF, 720p, and 1080p
• SIP protocol: SIP 2.0 over UDP, TCP, or TLS
• Wi-Fi: Dual-band 2.4GHz and 5GHz
• Ethernet: One 10/100Mbps RJ45 port
• Alarm inputs: Eight
• Short-circuit output: One
• Doorbell input: One
• RS-485 interface: One reserved interface
• Power: IEEE 802.3af PoE or 12V DC, 1A
• Installation: Wall mounted
• Dimensions: 177.38 × 113.99 × 22.5mm
• Operating temperature: -10°C to 50°C
• Operating humidity: 10% to 90% RH

Why Choose This Indoor Station?

The Fanvil i505W Android Indoor Station combines intercom, video monitoring, alarm integration, and door control in a compact panel. Moreover, dual-band Wi-Fi and wired Ethernet give installers flexible network options.

Android support also enables compatible third-party applications and project customisation. Meanwhile, PoE can simplify wired installations by carrying network data and power through one cable. Overall, the Fanvil i505W Android Indoor Station provides a practical control point for residential and commercial entrance systems.

Frequently Asked Questions

How does the i505W communicate with visitors?

The station connects to a compatible SIP door phone through the building network. Its touchscreen displays visitor video, while the speaker supports full-duplex two-way conversation with acoustic echo cancellation.

How does remote door unlocking work?

An authorised user taps the configured unlock control during a compatible door-phone call or monitoring session. The connected access system then processes the release command. Proper door hardware and system configuration are required.

What can connect to the eight alarm inputs?

The inputs accept compatible alarm sensors selected during system design. These may include door contacts, emergency buttons, or other supported devices. An installer should confirm electrical requirements before making connections.

What is the difference between the i505 and i505W?

The i505W includes dual-band 2.4GHz and 5GHz Wi-Fi alongside its Ethernet port. The standard i505 relies on wired Ethernet. Both models provide the 7-inch touchscreen, Android 9.0, alarm interfaces, and PoE.
