Fanvil X210 IP Phone

Fanvil X210 IP Phone

The Fanvil X210 IP Phone is a high-end enterprise telephone for professionals who manage medium to high call volumes. Its three colour displays organise line status, contacts, and programmable functions across one desktop interface. Moreover, 20 Session Initiation Protocol lines and up to 106 DSS assignments give receptionists, supervisors, and managers direct control over demanding communication workflows.

Product Overview

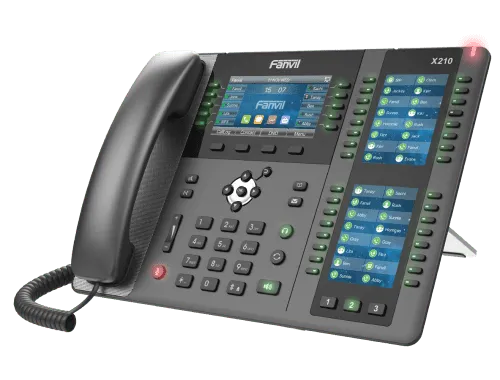

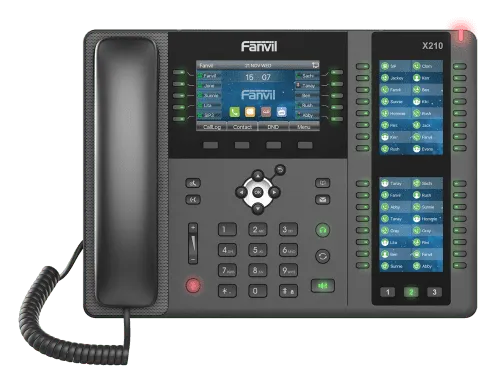

The X210 combines a 4.3-inch main display with two 3.5-inch side displays. Therefore, users can monitor extensions and access frequent actions without adding an external expansion panel. The three-screen layout supports ten DSS entries on the main display and up to 96 entries across the side displays.

This enterprise desk phone also supports HD audio, Bluetooth 4.2, and optional Wi-Fi connectivity through a USB dongle. In addition, dual Gigabit Ethernet ports provide fast wired networking. Integrated IEEE 802.3af Power over Ethernet can supply data and power through one cable.

Key Features

• Three colour displays arrange call details and programmable functions within a clear desktop layout.
• Twenty SIP lines support users who handle several extensions, accounts, or departments.
• Up to 106 DSS assignments provide fast access to Busy Lamp Field status, speed dialling, and group broadcasting.
• Forty-two physical DSS keys with tri-colour LEDs show the status of assigned lines and functions.
• G.722 and Opus codecs provide HD audio through the handset and full-duplex speakerphone.
• Bluetooth 4.2 supports compatible wireless headsets for flexible hands-free communication.
• An optional Wi-Fi dongle allows wireless network access when Ethernet cabling is unsuitable.
• Six-way audio conferencing helps teams hold multi-person discussions directly from the phone.
• H.264 decoding supports incoming video from compatible IP cameras and SIP video door phones.
• Electronic Hook Switch support enables remote call control with a compatible wireless headset setup.
• Dual Gigabit ports provide a network connection for the phone and a bridged computer.

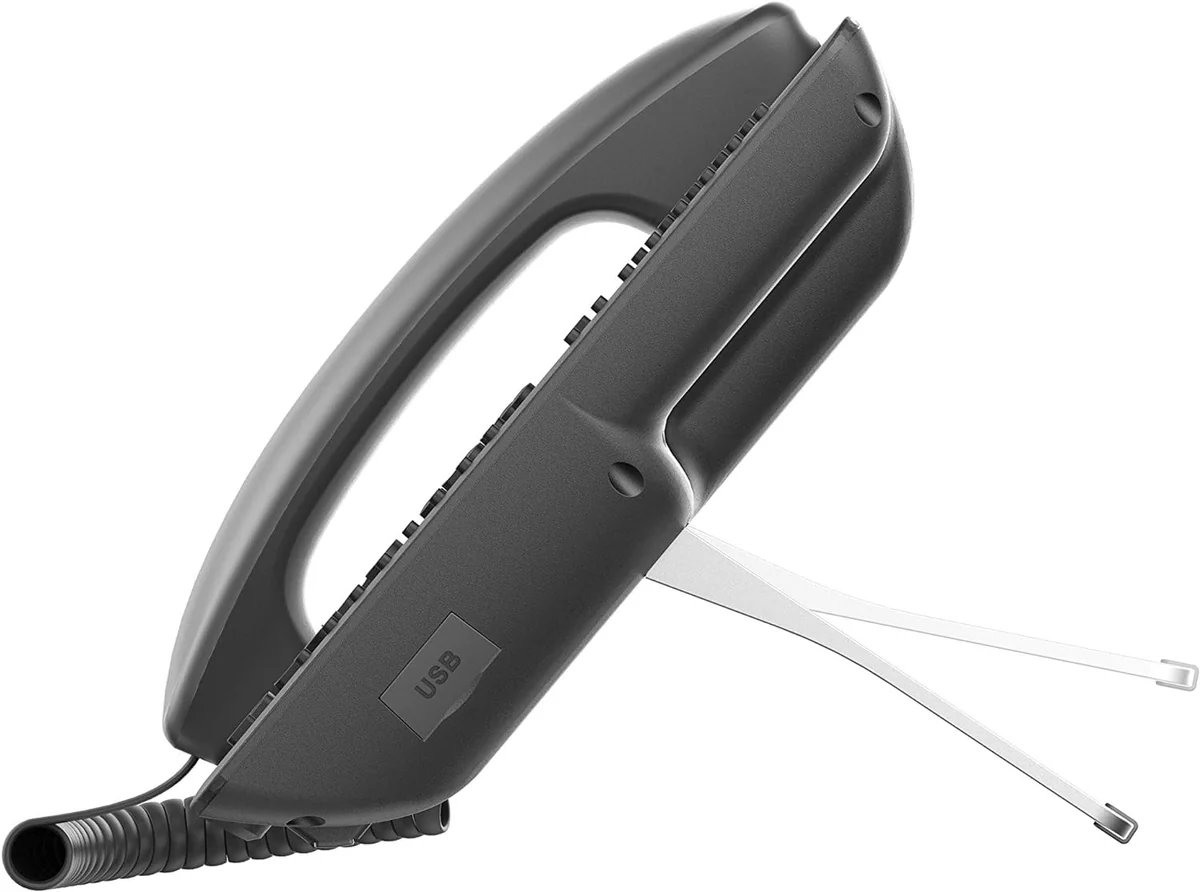

• The adjustable stand provides 40-degree and 50-degree viewing positions.

Technical Specifications

• Brand: Fanvil
• Model: X210
• Product type: High-end enterprise IP phone
• Focus keyphrase: Fanvil X210 IP Phone
• SIP lines: 20
• Main display: 4.3-inch 480 × 272 colour screen
• Side displays: Two 3.5-inch 320 × 480 colour screens
• DSS capacity: Up to 106 assignments
• Physical DSS keys: 42 with tri-colour LEDs
• Conferencing: Six-way audio conference
• Bluetooth: Version 4.2
• Wi-Fi: Supported through an optional USB Wi-Fi dongle
• Ethernet: Two 10/100/1000 Mbps RJ45 ports
• USB: One Universal Serial Bus 2.0 Type-A port
• Video codec: H.264
• Supported video resolution: QCIF, CIF, VGA, and 1080p
• Phonebook: 2,000 local and 2,000 remote entries
• Call records: 1,000 entries
• Power: IEEE 802.3af PoE or 5V DC, 2A
• Dimensions at angle one: 309 × 214 × 187 mm
• Dimensions at angle two: 309 × 226 × 167 mm
• Operating temperature: 0°C to 45°C
• Operating humidity: 10% to 95%
• Colour: Dark grey

Common Applications

The X210 suits reception areas, executive offices, customer service teams, administrative desks, and operations centres. In particular, its integrated side displays help users monitor many extensions at once. It also supports workplaces that receive compatible video calls from door phones or IP cameras.

Why Choose the Fanvil X210?

The Fanvil X210 IP Phone places extensive line control within one integrated unit. Unlike a standard desk phone, it provides two dedicated side displays for DSS functions. Therefore, busy users can view more extension states while keeping the main screen available for active call information.

Furthermore, HD audio supports clear conversations, while Bluetooth and EHS improve headset use. Dual Gigabit networking and PoE also simplify fixed desk installation. Contact us to confirm phone-system compatibility and the accessories required for wireless connectivity.

Frequently Asked Questions

Does the X210 require an external expansion module?

No. The phone already includes two 3.5-inch side displays for DSS functions. Together with the main display, they provide up to 106 DSS assignments. Therefore, users can manage many extensions without adding a separate expansion panel.

How does the X210 provide 106 DSS assignments?

The 4.3-inch main display supports ten DSS entries. Meanwhile, the two side displays provide up to 96 additional entries through 32 physical keys and page switching. Combined, the three displays provide access to 106 assignable functions.

Can the X210 display video from a door phone?

Yes. The phone supports H.264 video decoding and can receive compatible video calls. Supported resolutions include QCIF, CIF, VGA, and 1080p. Therefore, it can display video from compatible SIP door phones or IP cameras.
