Fanvil DB20-H Phone Station

Fanvil DB20-H Phone Station

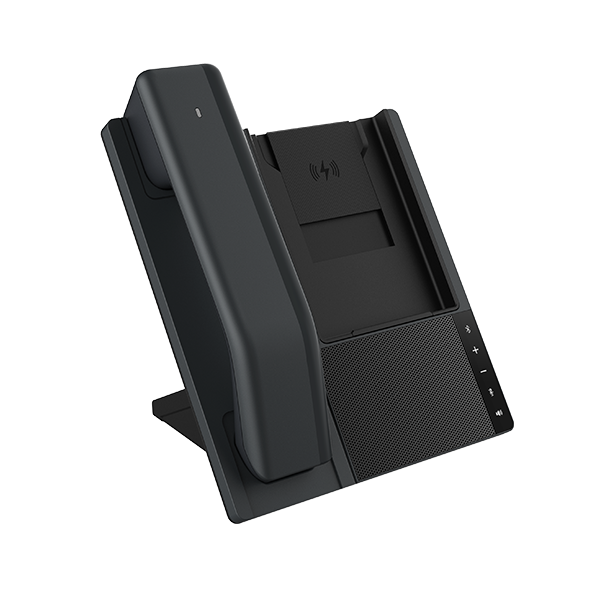

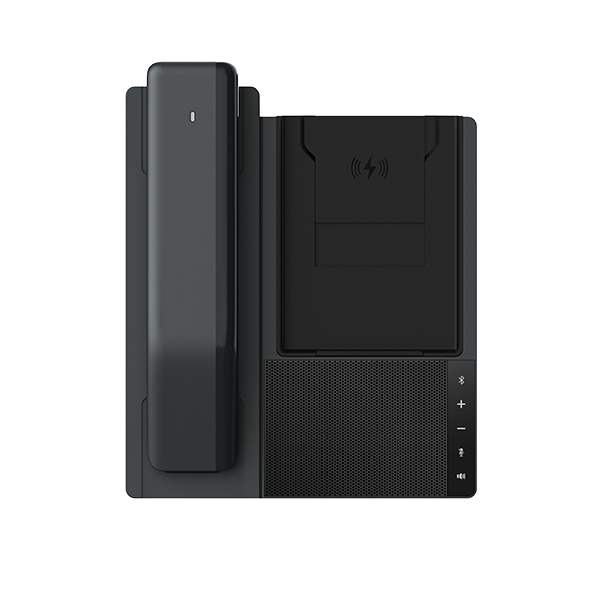

The Fanvil DB20-H Phone Station is an all-in-one communication hub for computers and smartphones. It combines a Bluetooth handset, full-duplex speakerphone, adjustable device stand, and wireless charger. Therefore, users can manage calls while keeping their workspace organised. The DB20-H suits modern offices, home workspaces, reception desks, and shared meeting areas.

Product Overview

The DB20-H connects to a computer through USB. In addition, Bluetooth 5.4 links the station to compatible smartphones and computers. It can remember up to eight paired devices and maintain two simultaneous Bluetooth connections. As a result, users can move between connected communication devices more conveniently.

A wireless handset provides private conversations within a range of up to 10 metres. Meanwhile, the base offers full-duplex hands-free calling. Its two omnidirectional microphones capture voices from up to 1.5 metres. Furthermore, beamforming and noise-processing technologies help maintain clear conversations in suitable indoor environments.

The integrated stand holds a smartphone at an adjustable angle. Consequently, users can achieve a better viewing position during compatible video calls. The base also provides 10W wireless charging for supported smartphones.

Key Features

• Connects to compatible computers through the supplied USB cable.
• Supports Bluetooth connections with compatible computers and smartphones.
• Uses Bluetooth 5.4 with an operating range of up to 10 metres.
• Stores up to eight paired Bluetooth devices.
• Maintains two simultaneous Bluetooth connections.
• Includes a wireless handset with call, volume, and mute controls.
• Provides up to 14 hours of handset talk time.
• Offers a dual-microphone speakerphone with a 1.5-metre pickup range.
• Supports full-duplex hands-free conversation.
• Includes beamforming, noise cancellation, noise suppression, and automatic gain control.
• Delivers up to 10W wireless charging for compatible smartphones.
• Charges the wireless handset at 5W through the base.
• Features an adjustable smartphone stand for a comfortable video-call angle.
• Includes dedicated answer, end-call, volume, mute, and Bluetooth buttons.
• Supports compatible unified communications and video-conferencing services.

Technical Specifications

• Brand: Fanvil
• Model: DB20-H
• Product type: All-in-one phone station
• Base connectivity: USB and Bluetooth
• Handset connectivity: Bluetooth
• Bluetooth version: 5.4
• Bluetooth profiles: A2DP and HSP
• Wireless operating range: Up to 10 metres
• Bluetooth pairing list: Up to eight devices
• Simultaneous Bluetooth connections: Two
• Base microphones: Two omnidirectional analogue microphones
• Base voice pickup range: Up to 1.5 metres
• Speaker output: 3W
• Speaker frequency range: 195Hz to 20kHz
• Audio mode: Full-duplex
• Audio processing: ENC, ANS, AGC, beamforming, and reverberation reduction
• Handset microphones: Two omnidirectional analogue microphones
• Hearing aid compatibility: Supported
• Handset battery: 300mAh
• Handset talk time: Up to 14 hours
• Handset standby time: Up to 21 hours
• Handset charging time: Approximately 3.4 hours
• Smartphone wireless charging: Up to 10W
• Handset wireless charging: 5W
• Power supply: 12V DC, 1.5A
• Base dimensions: 204.8 × 174.9 × 114.8mm
• Handset dimensions: 203.7 × 45.8 × 47mm
• Base weight: 752g
• Handset weight: 180g
• Operating temperature: -10°C to 60°C
• Operating humidity: 10% to 95% RH

Common Applications

Office professionals can connect the DB20-H to a computer for calls through compatible softphone or conferencing services. Moreover, pairing a smartphone allows users to manage mobile calls from the handset or speakerphone.

Remote workers can use the adjustable stand during video meetings while keeping their smartphone charged. Reception teams can also benefit from the wireless handset when they need to move around a nearby workspace. However, call-control compatibility depends on the connected service.

Why Choose This Product?

The Fanvil DB20-H Phone Station brings several desktop accessories into one organised unit. It provides private handset calling, hands-free communication, device positioning, and smartphone charging. Therefore, users need fewer separate items on their desks.

Its Bluetooth handset offers mobility, while the speakerphone supports group conversations. In addition, physical controls provide quick access to everyday call functions. The dual-device connection also makes the station practical for users who regularly communicate through both computers and smartphones.

The Fanvil DB20-H Phone Station does not operate as a standalone SIP desk phone. Instead, it works as a communication accessory for compatible computers, smartphones, softphones, and conferencing platforms.

Frequently Asked Questions

How does the DB20-H connect to communication devices?

The base connects to a computer through USB or pairs with compatible computers and smartphones through Bluetooth 5.4. It stores up to eight paired devices and supports two simultaneous Bluetooth connections.

How does the wireless handset support mobile working?

The handset operates within a Bluetooth range of up to 10 metres. Its 300mAh battery provides up to 14 hours of talk time, allowing users to move around a nearby workspace during calls.

What audio features improve speakerphone conversations?

Two omnidirectional microphones capture speech from up to 1.5 metres. Beamforming, environmental noise cancellation, adjustable noise suppression, automatic gain control, and reverberation reduction help improve voice clarity.

How does the wireless charging area work?

The charging area supplies up to 10W to compatible wireless-charging smartphones. Correct coil alignment is necessary for reliable charging. Meanwhile, the base charges the included wireless handset at 5W.

What comes in the DB20-H package?

The package includes the DB20-H base, wireless handset, 12V DC power supply, USB cable, and Quick Start Guide.
