Fanvil V66 Pro Wireless Handset Phone

Fanvil V66 Pro Wireless Handset Phone

The Fanvil V66 Pro Wireless Handset Phone combines advanced desk-phone controls with a detachable BTH60 Bluetooth handset. It suits executives, reception teams, managers, and other professionals who need to move during calls. In addition, its 7-inch adjustable touchscreen supports clear menu navigation and incoming video display. Twenty SIP lines, Wi-Fi 6, Bluetooth 5.4, and Gigabit Ethernet provide versatile business connectivity.

Product Overview

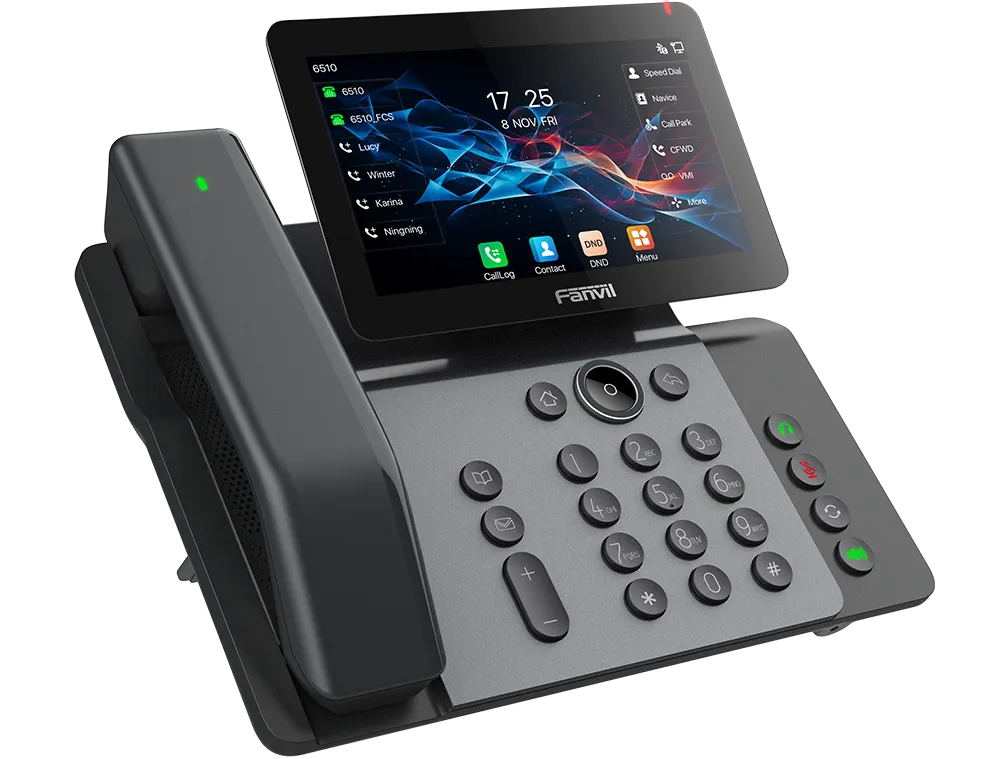

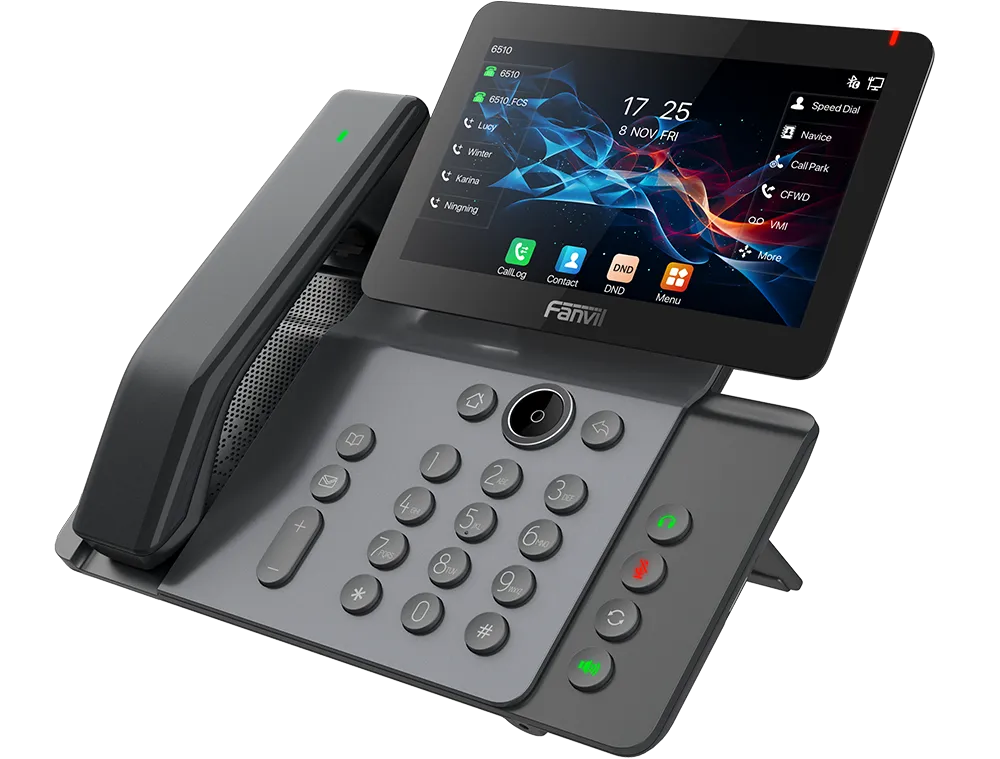

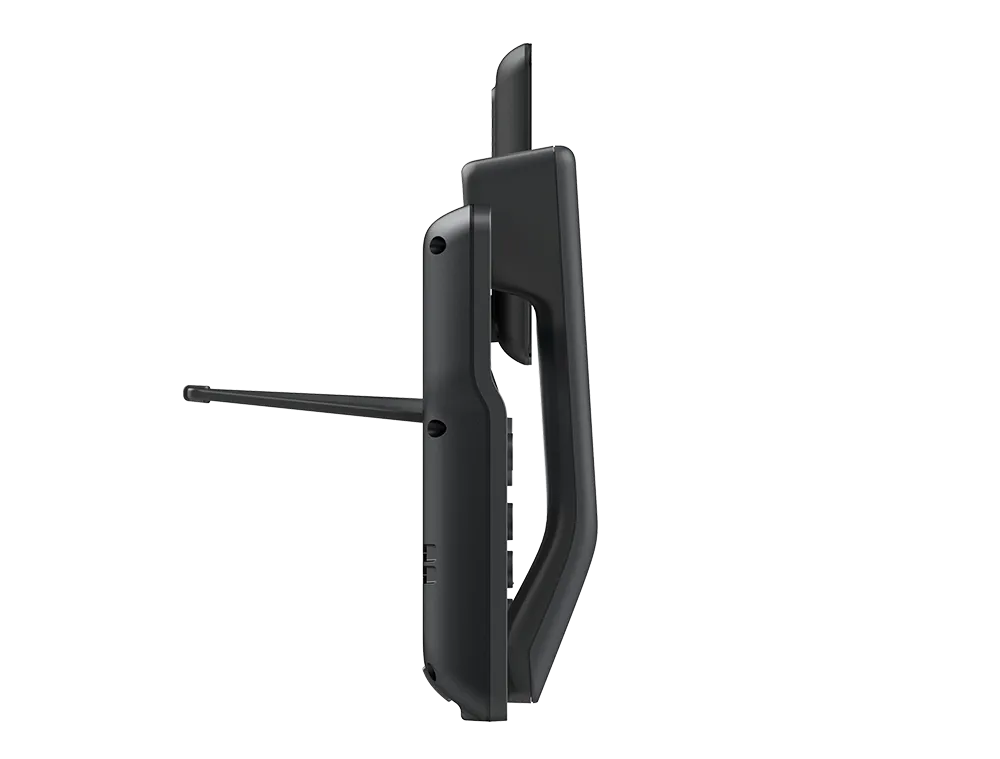

The V66 Pro integrates voice communication, incoming video decoding, and programmable call controls. Its 7-inch 1024 × 600 In-Plane Switching touchscreen adjusts between 0 and 40 degrees. Therefore, users can select a suitable viewing angle for their desk position and lighting conditions.

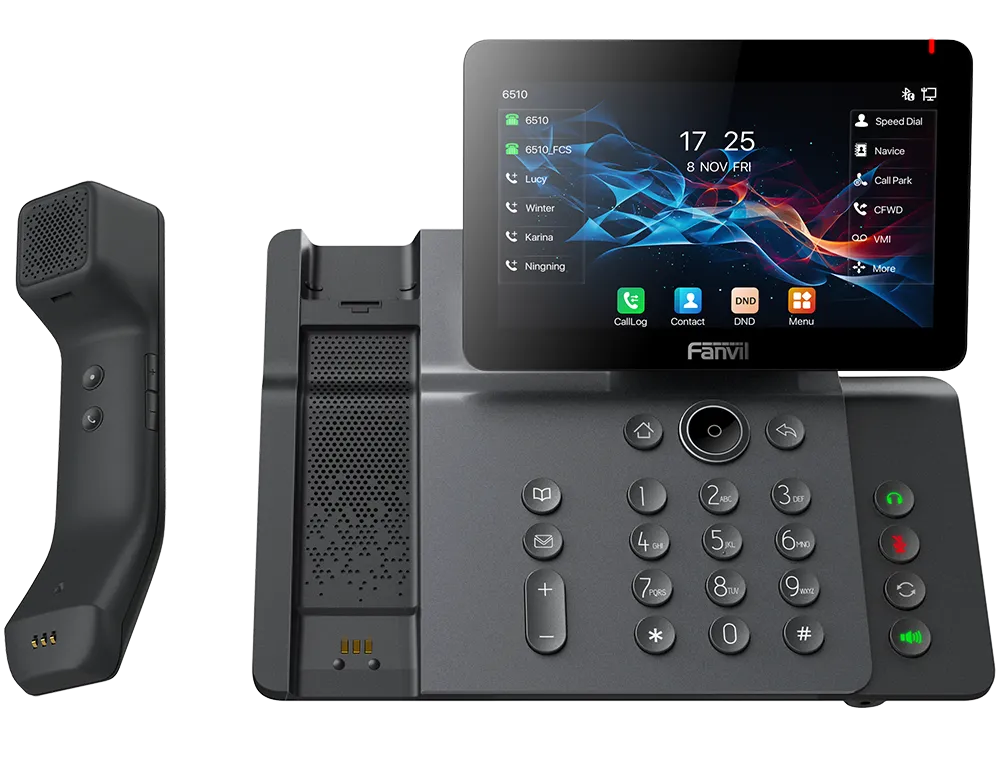

Unlike a conventional corded handset, the included BTH60 communicates with the phone base through Bluetooth. It supports automatic pairing, handset location, volume adjustment, call control, and a programmable key. Moreover, its operating range reaches 10 metres under suitable conditions.

Key Features

• Includes a BTH60 Bluetooth wireless handset, allowing users to move within a 10-metre range while handling calls.
• Provides up to 13 hours of handset talk time, supporting extended business conversations between charges.
• Offers a handset-searching function, helping users locate the BTH60 when it has been misplaced nearby.
• Features a programmable handset key for functions such as mute, hold, speed dial, or Dual-Tone Multi-Frequency commands.
• Uses antimicrobial material on the handset and keypad surfaces to inhibit more than 99.5% of bacterial growth.
• Supports 20 Session Initiation Protocol lines, allowing users to manage many extensions or calling accounts.
• Displays incoming H.264 video at resolutions up to 1080p, providing visual information from compatible endpoints.
• Provides 116 virtual DSS assignments for line selection, Busy Lamp Field monitoring, and speed dial access.
• Supports six-way audio conferencing, enabling several participants to join one business discussion.
• Includes dual-band Wi-Fi 6 and Bluetooth 5.4 for flexible network and accessory connections.
• Provides dual Gigabit Ethernet ports and IEEE 802.3af Power over Ethernet for structured network installations.
• Supports up to four EM60 expansion modules, adding physical keys for call-intensive roles.

Technical Specifications

• Brand: Fanvil
• Model: V66 Pro
• Product type: Audio and video business IP phone
• Focus keyphrase: Fanvil V66 Pro Wireless Handset Phone
• Display: 7-inch 1024 × 600 IPS colour touchscreen
• Screen adjustment: 0 to 40 degrees
• SIP lines: 20
• Audio conferencing: Six-way
• Included handset: BTH60 Bluetooth wireless handset
• Handset range: Up to 10 metres or 32 feet
• Handset talk time: Up to 13 hours
• Handset standby time: Up to 14 hours
• Handset battery: Built-in 300 mAh battery
• Video decoding: H.264 at up to 1080p
• DSS capacity: Up to 116 virtual assignments
• Expansion support: Up to four EM60 modules
• Wireless networking: 2.4 GHz and 5 GHz Wi-Fi 6
• Bluetooth: Version 5.4
• Wideband codecs: G.722 and Opus
• Ethernet ports: Two 10/100/1000 Mbps ports
• Power over Ethernet: IEEE 802.3af
• USB interface: One USB 2.0 Type-A port
• Phonebook: Up to 2,000 local entries
• Power: 12 V DC, 1.5 A or PoE
• Dimensions: 245.4 × 252.5 × 63 mm
• Installation: Desktop or optional wall mounting

Common Applications

The V66 Pro suits executive offices, reception desks, customer service departments, administrative centres, and open workspaces. Its wireless handset helps users reach documents, consult nearby colleagues, or move between desk tasks without immediately ending a call.

Meanwhile, incoming video support suits environments connected to compatible video communication or intercom endpoints. The phone does not rely solely on wireless networking. Organisations can also deploy it through Gigabit Ethernet and PoE.

Why Choose This Product?

The BTH60 handset separates routine call handling from the fixed phone base. Users can answer calls, adjust volume, and use an assigned function while moving nearby. Additionally, automatic pairing simplifies the handset connection, while the locator function helps recover a misplaced unit.

The adjustable touchscreen provides direct access to call information and virtual DSS controls. Furthermore, 20 SIP lines and optional expansion modules support demanding workflows. The Fanvil V66 Pro Wireless Handset Phone combines local mobility, visual communication, and extensive line management in one professional endpoint.

Frequently Asked Questions

How far can the BTH60 handset operate from the phone?

The official specification states a connection distance of up to 10 metres or 32 feet. However, walls, nearby wireless equipment, and the office layout may affect the practical range.

What happens when the handset battery becomes low?

The handset status indicator flashes red slowly when its battery level falls below 10%. Users can then return the handset to the phone base for charging.

Can the handset reject an incoming call?

Yes. Users can double-press the BTH60 call button to reject an incoming call. The same button supports answering, redialling, and handset power controls.

How does the handset locator work?

The phone includes a searching function for the paired handset. During a search, the handset flashes blue and green, making it easier to identify within the working area.

Can the V66 Pro display video from another device?

Yes. It decodes incoming H.264 video at resolutions up to 1080p. However, the specification does not list an integrated camera for transmitting the user’s own video.

Is a traditional corded handset included?

The V66 Pro includes the BTH60 Bluetooth wireless handset. A wired HD handset and its RJ9 cord are listed as optional accessories rather than standard supplied items.
