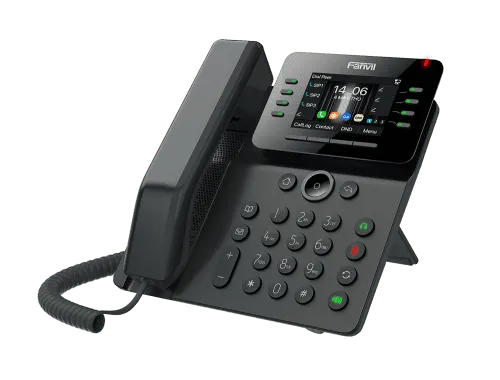

Fanvil V63 Prime Business IP Phone

Fanvil V63 Prime Business IP Phone

The Fanvil V63 Prime Business IP Phone combines a compact colour interface with programmable call controls. It supports six Session Initiation Protocol lines and up to 21 DSS assignments. Therefore, users can manage several accounts while keeping frequent actions within easy reach. Dual Gigabit ports, integrated Power over Ethernet, HD audio, and six-way conferencing also support efficient communication at busy professional desks.

Product Overview

The V63 uses a 2.8-inch 320 × 240-pixel colour screen. Seven DSS keys sit beside the display, while a page key provides access to three assignment pages. This arrangement creates up to 21 programmable positions without making the phone unnecessarily large.

Each DSS assignment can control a supported line, speed dial, or Busy Lamp Field function. Consequently, receptionists and administrative users can monitor extensions or reach regular contacts with fewer menu steps.

The phone also provides two 10/100/1000 Mbps Ethernet ports. Its bridged PC port can connect a nearby workstation through the telephone. Meanwhile, integrated IEEE 802.3af PoE supports cleaner desk installation through one power-and-data cable.

Key Features

• Supports six SIP lines, allowing users to register several compatible extensions or calling accounts.
• Provides seven physical DSS keys and three pages for up to 21 programmable assignments.
• Uses a 2.8-inch 320 × 240-pixel colour display for contacts, calls, menus, and line information.
• Supports G.722 and Opus codecs for HD audio on compatible telephone platforms.
• Offers a local six-way audio conference for team and customer discussions.
• Includes two Gigabit Ethernet ports for network access and computer pass-through.
• Supports IEEE 802.3af Power over Ethernet, reducing separate power cabling at the desk.
• Provides a USB 2.0 Type-A port for supported accessories, including approved wireless adapters.
• Supports an Electronic Hook Switch headset for convenient hands-free call control.
• Stores up to 1,000 local contacts and accesses remote XML or LDAP directories.
• Supports VLANs and Quality of Service for separating and prioritising voice traffic.
• Allows automatic provisioning for consistent setup across multiple business phones.

Technical Specifications

• Brand: Fanvil
• Model: V63
• Product type: Prime business SIP IP phone
• Focus keyphrase: Fanvil V63 Prime Business IP Phone
• Display: 2.8-inch 320 × 240-pixel colour screen
• SIP lines: 6
• DSS capacity: Up to 21 assignments
• Physical DSS controls: Seven keys and one page key
• Conference capacity: Six-way audio conference
• Ethernet interfaces: Two 10/100/1000 Mbps bridged ports
• Power: IEEE 802.3af PoE or optional external power supply
• USB interface: One USB 2.0 Type-A port
• Audio modes: Handset, full-duplex speakerphone and headset
• Wideband audio codecs: G.722 and Opus
• Local phonebook: Up to 1,000 entries
• Remote phonebook: XML and LDAP support
• Call history: Up to 1,000 records
• Headset support: Electronic Hook Switch
• Internet Protocol support: IPv4 and IPv6
• Network features: VLAN, LLDP, QoS and 802.1X
• Secure communication: SIP over TLS and SRTP
• Installation: Desktop or optional wall mounting
• Intended environment: Indoor use

Common Applications

The Fanvil V63 Prime Business IP Phone suits reception desks, administrative offices, clinics, hotels, schools, retail counters, and customer service teams. Its 21 DSS assignments help users handle frequent transfers, monitor extensions, or call regular contacts. In addition, dual Gigabit ports suit desks where one network outlet must support both the telephone and a computer.

Why Choose This Product?

The V63 balances direct call controls with a compact desk footprint. Its paged DSS layout gives users access to 21 assignments without requiring a separate expansion panel. Furthermore, Gigabit pass-through protects workstation connectivity, while PoE simplifies installation. The USB port also provides an upgrade path for supported accessories. These features make the phone practical for structured business communication workflows.

Frequently Asked Questions

Why does the V63 have 21 DSS assignments but only seven DSS keys?

The page key switches between three assignment pages. Therefore, each of the seven physical DSS keys can access three configured positions, providing up to 21 assignments.

Are six SIP lines and 21 DSS keys the same thing?

No. SIP lines are registered calling accounts. DSS assignments are programmable shortcuts for lines, BLF monitoring, speed dial, and other supported functions.

Does the V63 include built-in Wi-Fi?

No. The V63 does not have built-in Wi-Fi. Wireless network access requires a compatible USB Wi-Fi adapter, which is obtained separately.

Does the V63 have built-in Bluetooth?

No. Bluetooth connectivity requires a compatible optional USB adapter. The phone also supports EHS headsets through its dedicated headset interface.

Can the USB port run any USB device?

No. The USB port works only with supported accessories and functions. Users should confirm device compatibility before connecting an adapter or headset.

Can the V63 show whether another extension is busy?

Yes. A DSS key can use Busy Lamp Field monitoring when the connected SIP server supports BLF. The key indicator then reflects the assigned extension’s status.

Can staff manage contacts centrally?

Yes. The phone supports remote XML and LDAP directories. An administrator must configure the directory server and connection details.

Does the package include a wall-mounting bracket?

The phone supports optional wall mounting. However, the required wall-mounting accessory is obtained separately from the standard desktop arrangement.
