Fanvil VIK-01 Video Intercom Kit

Fanvil VIK-01 Video Intercom Kit

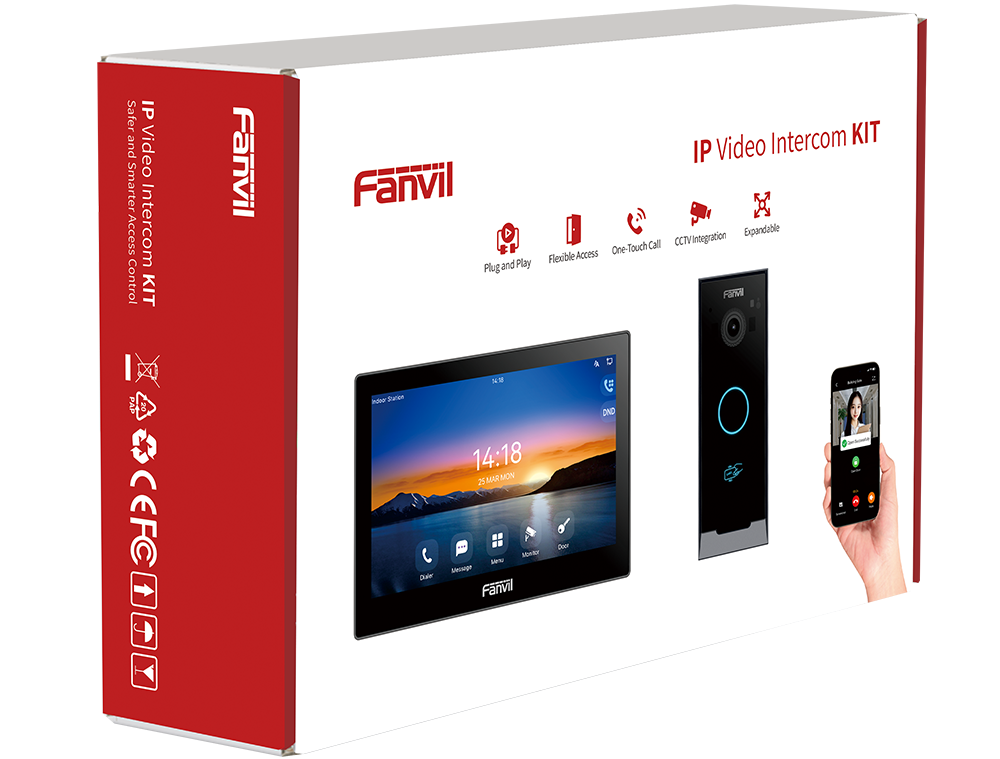

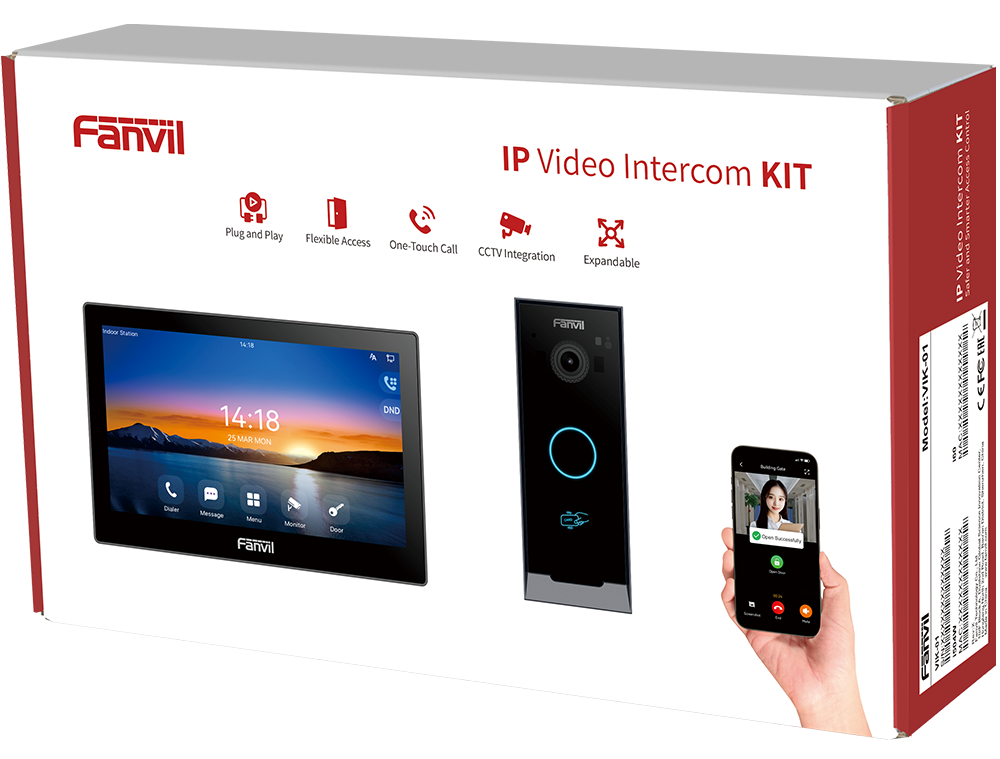

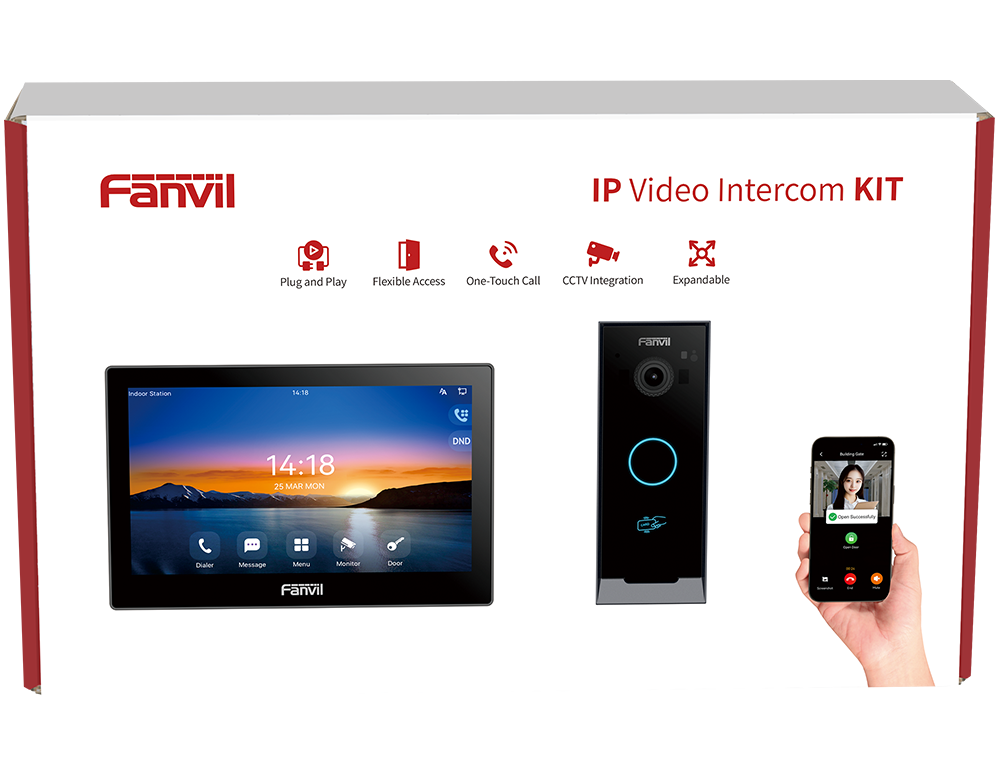

The Fanvil VIK-01 Video Intercom Kit provides visitor calling, entrance video, and remote door release for villas and single-family homes. It combines an outdoor video door phone, a 7-inch indoor touchscreen, and the Fanvil Link mobile app. Therefore, residents can answer visitors and manage a compatible entrance from inside the home or through a smartphone.

Integrated Home Entrance Solution

The kit brings its main intercom components together as one coordinated system. The outdoor unit handles visitor calls and entrance video. Meanwhile, the indoor station provides a wall-mounted control point inside the property.

The Fanvil Link app extends selected functions to a compatible mobile device. Consequently, residents do not have to remain near the indoor screen to receive visitor calls or operate a configured door release.

The solution contains three main elements:

• i60 outdoor video door phone
• i504W 7-inch SIP indoor station
• Fanvil Link mobile application support

Compatible locking hardware, network equipment, cabling, and installation accessories may still be required. Buyers should therefore confirm the complete project requirements before installation.

Visitor Calling Workflow

A visitor presses the call button on the outdoor unit. The system then sends an HD video call to the configured indoor station and mobile application.

Residents can view the visitor and hold a two-way conversation before granting access. Therefore, the system adds visual and verbal verification to everyday entrance management.

The indoor touchscreen provides a permanent home control point. In addition, the mobile app offers a convenient response option when the user is away from the screen or outside the property.

Remote Access Through the Mobile App

The Fanvil Link app supports real-time video intercom, remote unlocking, and smart notifications. As a result, authorised users can receive entrance activity on a compatible smartphone.

Remote functions require correct device registration, account setup, and internet access. Moreover, mobile notifications depend on the phone’s connection, app permissions, and cloud-service availability.

Administrators should protect app accounts with strong credentials. They should also remove access promptly when a user no longer needs remote control of the entrance.

Key Features

• Complete video intercom solution for residential entrances.
• Includes an outdoor video door phone and indoor touchscreen.
• Supports the Fanvil Link mobile app.
• Provides HD audio and video visitor calls.
• Enables door release from the indoor station.
• Supports remote unlocking through the mobile application.
• Provides real-time entrance video through compatible devices.
• Supports smart mobile notifications.
• Offers 2.4GHz and 5GHz Wi-Fi through the indoor station.
• Supports wired Ethernet network connections.
• Provides several authorised door-opening methods.
• Includes a 2-megapixel entrance camera.
• Uses an IP65-rated outdoor calling unit.
• Supports SIP and ONVIF integration.
• Simplifies deployment through coordinated kit components.

Indoor Touchscreen Control

The 7-inch colour touchscreen provides a 1024 × 600-pixel resolution. Therefore, residents receive a clear interface for visitor video, intercom calls, and configured entrance functions.

The indoor station supports dual-band 2.4GHz and 5GHz Wi-Fi. Consequently, installers can connect it wirelessly where suitable coverage is available. It also provides Ethernet and PoE options for a wired installation.

In addition, the station can display authorised video from compatible door phones and IP cameras. Available monitoring functions depend on the system design and device configuration.

Flexible Door-Opening Options

The outdoor unit supports several methods for authorised entry and door release. These include Bluetooth Low Energy, compatible IC cards, remote DTMF commands, and a connected indoor exit switch.

Residents can also release the entrance from the indoor touchscreen or mobile app. Therefore, the Fanvil VIK-01 Video Intercom Kit supports occupants, regular users, and approved visitors through different access workflows.

Every unlocking method requires correct permissions and compatible hardware. A qualified installer should configure the system and test each method before use.

Simplified Deployment

The kit supports plug-and-play deployment through straightforward power and network connections. Since the main intercom devices are designed to work together, installers can create a residential entrance solution without selecting unrelated communication components.

However, plug-and-play does not remove the need for correct cabling and configuration. The complete system may require an electric lock, power supply, network router, suitable mounting materials, and professional installation.

Suitable Residential Applications

Villas can use the system at a pedestrian gate or main entrance. Likewise, detached and single-family homes can install it where residents need indoor and mobile visitor response.

The indoor touchscreen provides a fixed control point for household members. Meanwhile, the app supports users who need remote access. This combination makes the kit suitable for homes with changing schedules or several authorised residents.

Why Choose This Intercom Kit?

The Fanvil VIK-01 Video Intercom Kit combines indoor, outdoor, and mobile visitor management in one solution. Therefore, users receive a consistent workflow from the entrance call to the final access decision.

Moreover, dual-band Wi-Fi supports flexible indoor deployment. Multiple unlocking methods also accommodate different household requirements. Overall, the kit provides a practical foundation for residential video intercom and controlled door release.

Frequently Asked Questions

What additional equipment is needed for installation?

The project may require an electric lock, suitable power equipment, network access, cabling, and mounting materials. Requirements depend on the entrance, existing infrastructure, and selected unlocking methods.

How do several household members use the mobile app?

Each authorised user requires the appropriate Fanvil Link setup and permissions. The system administrator should control who can receive calls, view entrance video, and activate remote unlocking.

What happens when the mobile phone has no internet connection?

Cloud-based calls, notifications, video viewing, and remote unlocking may become unavailable. The indoor station can remain the on-site response point when the local system and required connections are operating.

How should homeowners protect remote unlocking?

Homeowners should use strong app credentials, restrict access to trusted users, secure their mobile devices, and remove old accounts promptly. Installers should also configure only the unlocking methods the household requires.
