Fanvil i66 Face Recognition Door Phone

Fanvil i66 Face Recognition Door Phone

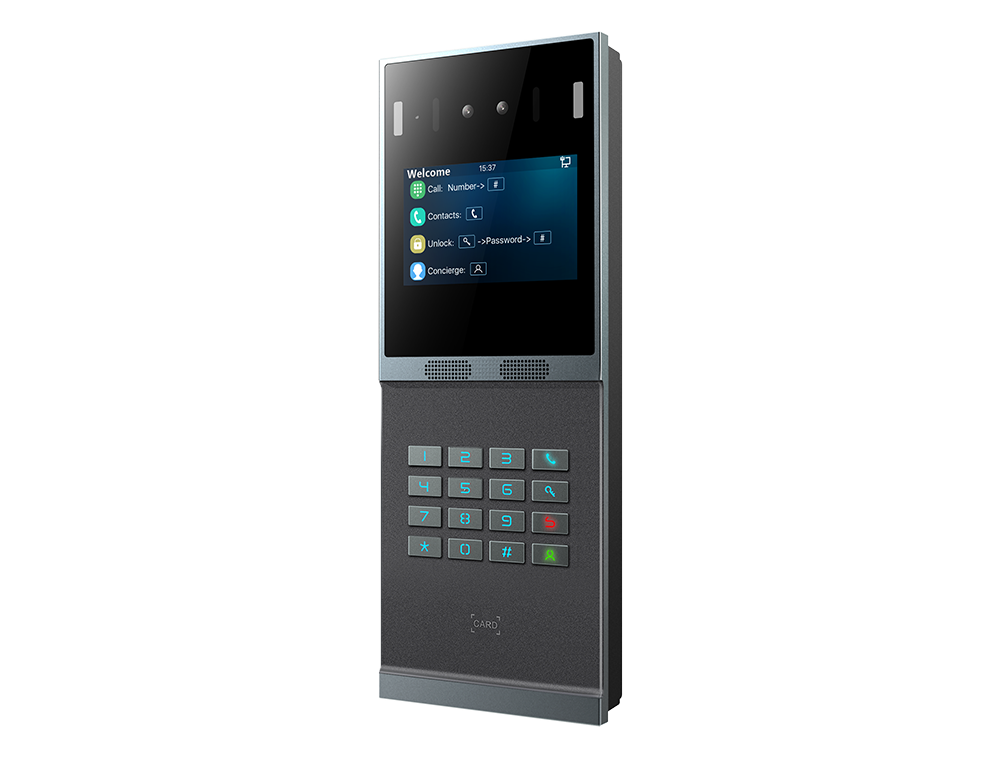

The Fanvil i66 Face Recognition Door Phone combines biometric access control, video intercom, and visitor management in one unit. It features a 4-inch IPS display, a dual-lens 2-megapixel camera, and anti-spoofing liveness detection. Moreover, it supports several authorised entry methods for flexible access management in apartments, offices, hotels, and residential communities.

High-Precision Facial Access

The i66 identifies registered users through high-precision facial recognition. Therefore, authorised occupants can enter without touching the device or carrying an access card. The system stores up to 10,000 face profiles, making it suitable for properties with many residents, employees, or approved visitors.

Anti-spoofing liveness detection helps distinguish a live person from presented photographs, videos, or masks. Consequently, the system provides an additional verification layer for biometric access. However, administrators should still combine correct enrolment, access rules, and suitable door hardware with the recognition function.

Clear Display and Dual-Lens Camera

The 4-inch IPS colour screen offers an 800 × 480-pixel resolution. As a result, users receive clear prompts while entering a PIN, presenting credentials, or making an intercom call.

A dual-lens 2-megapixel camera captures entrance video and supports automatic illumination. Moreover, infrared or white-light assistance improves image capture in low-light conditions. The camera provides a 73-degree diagonal field of view for focused entrance monitoring.

Multiple Door-Opening Methods

The Fanvil i66 Face Recognition Door Phone supports several access methods for different users and situations. Property managers can therefore assign credentials according to each person’s role and access requirements.

Supported methods include:

• Facial recognition
• IC or ID card
• PIN code
• QR code
• Remote DTMF code
• Compatible mobile application
• Connected indoor release control

The device stores up to 10,000 cards. However, the complete installation requires compatible locking hardware, suitable power equipment, and correct access-control configuration.

Key Features

• 4-inch IPS colour screen with 800 × 480 resolution.
• High-precision facial recognition for authorised entry.
• Capacity for up to 10,000 registered faces.
• Capacity for up to 10,000 access cards.
• Anti-spoofing liveness checks for photographs, videos, and masks.
• Dual-lens 2-megapixel camera with automatic illumination.
• Twelve numeric keys and four function keys.
• Two-way audio and video intercom.
• Intelligent noise reduction for clearer conversations.
• SIP 2.0 support over UDP, TCP, or TLS.
• ONVIF support for compatible video-system integration.
• IP66 protection against dust and water.
• IK07 impact-resistance rating.
• PoE or 12V DC power options.
• Wall-mounted or optional flush-mounted installation.

Audio and Video Intercom

Visitors can communicate with authorised users through compatible IP phones, indoor stations, or mobile applications. Therefore, residents or staff can view and speak with a visitor before granting entry.

The intelligent noise-reduction algorithm helps reduce distracting environmental sounds. In addition, the built-in speaker and microphone support two-way communication at the entrance.

SIP compatibility allows the i66 to operate within suitable IP communication systems. Meanwhile, ONVIF support enables integration with compatible video-management platforms. System features depend on the connected equipment and configuration.

Security System Integration

Three contact inputs and two contact outputs support connection with suitable access and security equipment. Furthermore, a Wiegand interface allows integration with compatible controllers. One reserved RS-485 interface is also available for supported project requirements.

The Fanvil i66 Face Recognition Door Phone supports H.264 video encoding. Therefore, authorised systems can receive entrance video while managing communication and access events.

Outdoor Protection and Installation

The aluminium-alloy housing provides Fanvil i66 Face Recognition Door Phone protection against dust and water ingress. Additionally, the IK07 rating provides resistance against a defined level of mechanical impact. These ratings support installation in demanding entrance environments when the unit is mounted correctly.

Installers can wall-mount the device or use the optional EX103 bracket for flush mounting. Furthermore, power can come from IEEE 802.3at Class 4 PoE or a 12V DC, 2A supply.

Why Choose This Door Phone?

The i66 brings biometric identification, credential-based access, and visitor communication into one entrance device. Its large face and card capacity suits both residential and commercial properties.

Moreover, its liveness checks strengthen facial verification, while SIP and ONVIF support provide flexible system integration. Multiple access methods also help administrators serve permanent occupants, employees, and temporary visitors through suitable credentials.

Frequently Asked Questions

How should administrators enrol users for facial recognition?

Administrators should capture a clear, front-facing image under suitable lighting and link it to the correct user record. Accurate enrolment information helps the system compare authorised users consistently.

What happens when facial recognition cannot confirm a user?

The user can present another authorised credential, such as an IC or ID card, PIN, or QR code. Available alternatives depend on the access permissions and methods configured by the administrator.

How can temporary visitors receive access?

Administrators can issue a time-limited QR code or another suitable temporary credential through the connected management system. The available process depends on the software and access platform used for the installation.

What is required before installing the Fanvil i66 Face Recognition Door Phone outdoors?

Installers should prepare suitable network cabling, power, door hardware, and weather-sealed connections. They should also position the camera at an appropriate height with a clear view of approaching users.
