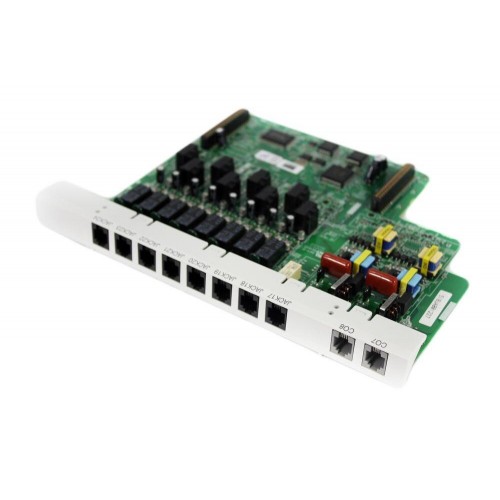

Panasonic KX-TE82480SX 2×8 Expansion Card

Panasonic KX-TE82480SX 2×8 Expansion Card

The Panasonic KX-TE82480SX 2×8 Expansion Card expands compatible KX-TES824 and KX-TEM824 business telephone systems. It adds two analogue Central Office lines and eight Single-Line Telephone extensions. Therefore, growing offices can connect additional external telephone lines and conventional analogue devices without replacing the complete Private Branch Exchange system. It suits small businesses, reception areas, clinics, schools, and retail operations.

Product Overview

The KX-TE82480 provides two ports for analogue public telephone lines. These ports increase the number of incoming and outgoing external connections available to the PBX. In addition, eight Single-Line Telephone ports support compatible analogue telephones, fax machines, modems, answering machines, and similar line-based devices.

The Panasonic KX-TE82480SX 2×8 Expansion Card installs internally within a supported PBX. On a KX-TES824, it can also be mounted above a KX-TE82483 expansion card. However, installation requires the system to be powered off and disconnected from the electrical supply.

Key Features

• Adds two analogue Central Office lines, increasing external call capacity for a compatible PBX.
• Provides eight Single-Line Telephone extensions, allowing more analogue devices to connect to the system.
• Supports KX-TES824 and KX-TEM824 systems, enabling capacity expansion without replacing the main unit.
• Accepts conventional analogue devices, including telephones, fax machines, modems, and answering machines.
• Supports optional Caller ID expansion through the appropriate KX-TE82493 card and compatible telephone service.
• Installs inside the PBX enclosure, keeping trunk and extension expansion centrally managed.
• Helps a fully configured system reach eight external lines and 24 extensions, depending on the main unit and installed cards.

Technical Specifications

• Brand: Panasonic
• Model: KX-TE82480SX
• Core model reference: KX-TE82480
• Product type: PBX expansion card
• Analogue Central Office line ports: 2
• Extension ports: 8
• Extension type: Single-Line Telephone
• Compatible PBX systems: KX-TES824 and KX-TEM824
• Supported devices: Analogue telephones, fax machines, modems and other compatible conventional-line devices
• Caller ID support: Requires an appropriate optional KX-TE82493 Caller ID card
• Maximum supported PBX capacity: Up to 8 outside lines and 24 extensions with the required system configuration
• Installation type: Internal optional service card

Common Applications

The Panasonic KX-TE82480SX 2×8 Expansion Card suits offices that need more analogue extensions or external telephone lines. Typical deployments include reception desks, small hotels, schools, medical practices, warehouses, shops, and administrative departments. A qualified technician should confirm the PBX model, existing cards, available connectors, line requirements, and final system capacity before installation.

Why Choose This Product?

This expansion card increases both trunk and extension capacity through one internal component. Consequently, an organisation can add two external lines while connecting eight more analogue devices. The card also helps businesses continue using suitable conventional telephones and office equipment.

The Panasonic KX-TE82480SX 2×8 Expansion Card provides a practical expansion path for supported KX-TE systems. Moreover, it integrates directly with the PBX hardware and configuration. Professional installation ensures correct card positioning, cabling, line assignment, and extension programming.

Frequently Asked Questions

Does the KX-TE82480 provide hybrid extension ports?

The card provides eight Single-Line Telephone extension ports. The KX-TE82483 is the separate card that provides hybrid extension ports.

Can the Panasonic KX-TE82480SX 2×8 Expansion Card work with both KX-TES824 and KX-TEM824?

The manufacturer’s installation manual lists both systems as compatible with the KX-TE82480 card.

Can the Panasonic KX-TE82480SX 2×8 Expansion Card be installed above a KX-TE82483?

The KX-TES824 supports mounting the KX-TE82480 above an installed KX-TE82483 by following the specified card-stacking procedure.

Does the card provide Caller ID without another component?

Caller ID requires the correct KX-TE82493 Caller ID card, compatible PBX programming, and an active Caller ID service from the telephone provider.
