NEC IP7WW-308U-A1 3 Analogue Trunks 8 Hybrid Extensions Card

NEC IP7WW-308U-A1 3 Analog Trunks 8 Hybrid Extensions Card

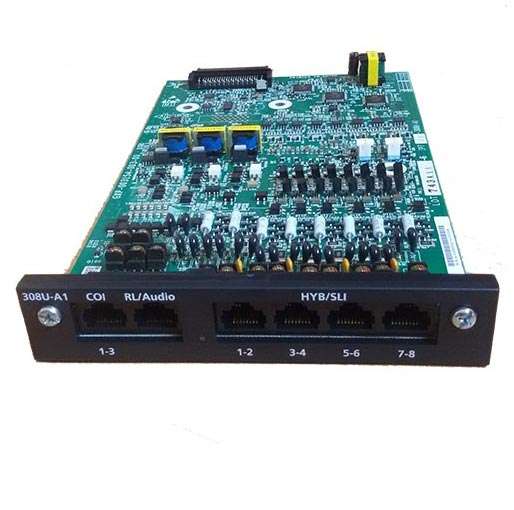

The NEC IP7WW-308U-A1 Extension Card is an internal expansion card designed for the NEC SL2100 communication system. It provides three analog trunk connections and eight hybrid extension ports. Therefore, organisations can add external telephone lines and internal users through one component. The card suits new installations, system upgrades, and replacement projects that require this specific trunk and extension configuration.

Product Overview

Three analog trunk ports connect compatible Central Office telephone lines to the SL2100 system. Meanwhile, eight hybrid extension ports support compatible internal telephones. This combined configuration helps installers provide external line access and additional extensions without using two separate cards.

The NEC IP7WW-308U-A1 Extension Card installs in an available universal slot within the SL2100 chassis. Since the platform has a modular design, businesses can select cards based on their required capacity. However, installers should confirm the existing hardware, available slots, software configuration, and total system limits before installation.

Key Features

• Provides three analog trunk ports, allowing the communication system to connect with compatible external telephone lines.
• Includes eight hybrid extension ports, creating additional connections for supported internal telephones.
• Combines trunk and extension interfaces on one card, helping installers use available chassis space efficiently.
• Integrates with the NEC SL2100 system, supporting structured communication-system deployment and expansion.
• Fits into an available universal chassis slot, allowing the card to operate within the central communication server.
• Supports growing organisations that require more external line access and additional internal telephone positions.
• Requires power-off installation, helping technicians follow NEC’s specified procedure for installing optional cards.
• Uses SL2100 system programming, allowing authorised installers to configure trunks and extensions for the required call flow.

Technical Specifications

• Brand: NEC
• Model: IP7WW-308U-A1
• Product type: Analog trunk and hybrid extension card
• Compatible system: NEC SL2100
• Analog trunk ports: 3
• Hybrid extension ports: 8
• Total physical ports: 11
• Installation location: SL2100 universal chassis slot
• Installation condition: System power must be switched off
• Hot-swap support: Not supported
• Primary function: Adds analog trunks and hybrid extensions

Common Applications

The NEC IP7WW-308U-A1 Extension Card suits SL2100 installations in offices, clinics, schools, hotels, retail premises, warehouses, and professional service firms. It is useful when a site requires three analog external lines and eight internal telephone connections. Furthermore, its combined configuration can simplify planning for small branches, departments, or expanding business telephone systems.

Why Choose This Product?

Combining trunk and extension connections on one card creates a practical configuration for everyday business communication. Additionally, its modular format allows organisations to expand a compatible SL2100 system without replacing the complete communication platform. This approach can reduce disruption during a planned capacity upgrade.

The NEC IP7WW-308U-A1 Extension Card provides clearly defined resources for external and internal calls. Consequently, it offers reliable operational value when its port configuration matches the organisation’s requirements. Professional compatibility checks, installation, and system programming remain important for correct operation.

Frequently Asked Questions

Does the NEC IP7WW-308U-A1 Extension Card provide eight IP extension ports?

The card provides eight hybrid extension ports rather than Ethernet ports. Internet Protocol extensions use the SL2100 system’s network and Voice over Internet Protocol resources.

Can technicians install the card while the SL2100 is operating?

NEC requires optional cards to be inserted or removed while the system is powered off. The system will not recognise a card installed while it remains powered.

Does the NEC IP7WW-308U-A1 Extension Card include a Primary Rate Interface connection?

The card includes three analog trunks and eight hybrid extensions. Primary Rate Interface connectivity requires separate supported hardware and suitable system configuration.

Where is the card installed inside the SL2100?

The card installs in an available universal slot within the SL2100 chassis. The installer should check existing cards, available slots, and system capacity beforehand.
