Panasonic KX-NS5180X 6-Port Analogue Trunk Card LCOT6

Panasonic KX-NS5180X 6-Port Analogue Trunk Card LCOT6

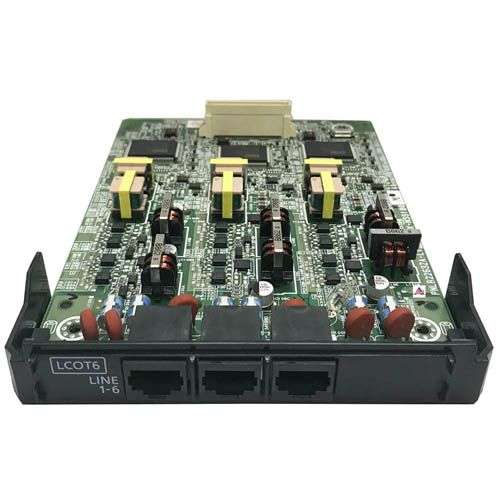

The Panasonic KX-NS5180X Trunk Card is a six-port analogue trunk expansion card for compatible KX-NS communication systems. It connects external analogue telephone lines to the Private Branch Exchange system. Therefore, businesses can expand incoming and outgoing call capacity while retaining existing analogue network services. It suits offices, hotels, schools, hospitals, and customer service operations.

Product Overview

The LCOT6 card adds six analogue external line connections to a supported KX-NS500 system or KX-NS520 expansion unit. It uses three RJ45 connectors, with each connector carrying two trunk circuits. Consequently, installers can organise several telephone lines through a compact internal card.

The Panasonic KX-NS5180X Trunk Card supports both Frequency Shift Keying and Dual-Tone Multi-Frequency Caller ID signalling. It also detects reverse polarity and line faults. However, Caller ID availability still depends on the telephone service provider and correct PBX programming.

Key Features

• Adds six analogue trunk ports, increasing the number of external landline connections available to the PBX.
• Uses three RJ45 connectors, allowing each connector to carry two analogue trunk circuits.
• Supports Frequency Shift Keying Caller ID, enabling compatible networks to send caller information to the system.
• Supports Dual-Tone Multi-Frequency Caller ID, providing compatibility with supported alternative caller identification signalling.
• Detects reverse polarity signals, helping the PBX recognise supported call supervision events.
• Detects line faults, helping technicians identify problems affecting connected analogue trunk circuits.
• Provides two power-failure transfer ports, supporting designated analogue connections during a mains power interruption.
• Supports system expansion up to 48 analogue external lines, subject to the PBX configuration and installed hardware.

Technical Specifications

• Brand: Panasonic
• Model: KX-NS5180X
• Card type: LCOT6 analogue trunk card
• Analogue trunk ports: 6
• Connectors: 3 RJ45
• Circuits per connector: 2
• Caller ID signalling: Frequency Shift Keying and Dual-Tone Multi-Frequency
• Reverse polarity detection: Supported
• Line-fault detection: Supported
• Power-failure transfer ports: 2
• Compatible equipment: KX-NS500 main unit and KX-NS520 expansion unit
• Maximum analogue line capacity: Up to 48 lines, depending on system configuration
• Installation type: Internal PBX service card

Common Applications

The Panasonic KX-NS5180X Trunk Card suits organisations that receive telephone service through analogue public network lines. It can expand trunk capacity for office switchboards, hotel reception systems, school administration offices, medical facilities, retail operations, and customer support desks. An authorised technician should confirm slot availability, cabling requirements, and the required number of external lines before installation.

Why Choose This Product?

This LCOT6 card provides a structured way to connect six additional analogue lines to a compatible communication system. Furthermore, its compact three-connector design simplifies internal cabling. Caller ID support also helps staff identify incoming callers when the network service provides that information.

The Panasonic KX-NS5180X Trunk Card includes practical diagnostic and continuity features. Line-fault detection assists maintenance, while two power-failure transfer ports support selected analogue connections during an outage. Therefore, it offers useful expansion for businesses that still depend on analogue trunk services.

Frequently Asked Questions

Why does the KX-NS5180X have three RJ45 connectors for six lines?

Each RJ45 connector carries two analogue trunk circuits. Therefore, the three connectors provide connections for all six LCOT ports.

What do the two power-failure transfer ports do?

They allow designated analogue lines to connect to supported extensions during a mains power failure. Correct wiring and PBX configuration are required.

Which Caller ID formats does the KX-NS5180X support?

The card supports Frequency Shift Keying and Dual-Tone Multi-Frequency Caller ID signalling. The available format depends on the connected telephone network.

Can one KX-NS5180X card provide 48 analogue lines?

One card adds six lines. Reaching 48 analogue lines requires additional supported cards, expansion hardware, available slots, and an appropriate system configuration.
