Fanvil CA400 All-in-One Conference Solution

Fanvil CA400 All-in-One Conference Solution CA400

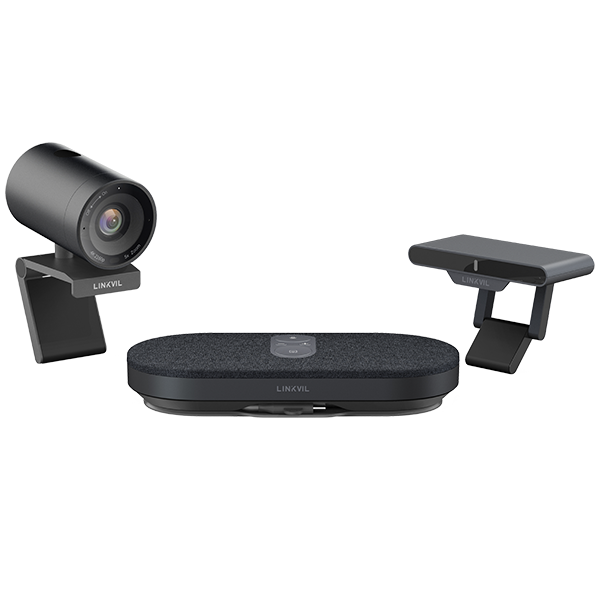

The Fanvil CA400 All-in-One Conference Solution is a wireless collaboration system for meeting rooms up to 32 square metres. It combines the MS10 screen-sharing speakerphone, RC10 receiver hub, and CM70 4K camera. Therefore, teams can manage presentations, video, and audio through one compact system. Plug-and-play operation also simplifies setup for office meetings, training, and remote collaboration.

Product Overview

The MS10 connects to a laptop through a single cable. It then provides wireless screen sharing, speakerphone functions, and camera access without extra software. Moreover, Bring Your Own Device support allows users to host meetings through compatible conferencing services.

The CM70 camera captures detailed 4K video through a 118.5-degree diagonal field of view. Meanwhile, the MS10 uses eight omnidirectional Micro-Electro-Mechanical System microphones for 360-degree voice pickup within four metres.

Key Features

• Casts content wirelessly at up to 4K and 30 frames per second, helping participants view detailed presentations.
• Streams conference video in Full High Definition 1080p at 30 frames per second.
• Uses eight microphones with beamforming, echo cancellation, noise suppression, and gain control for clearer conversation.
• Provides a 3-watt speaker for clear meeting audio.
• Supports automatic framing, which keeps participants properly positioned within the camera view.
• Offers 5x digital zoom and a manual privacy cover for flexible camera use.
• Supports one MS10 and up to three optional CP20 screen-sharing pods for multiple presenters.

Technical Specifications

• Brand: Fanvil
• Model: CA400
• Product type: Wireless video conferencing solution
• Recommended room size: Up to 32 square metres
• Camera sensor: 8-megapixel 1/2.8-inch sensor
• Maximum camera resolution: 3840 × 2160 at 30 fps through USB 3.0
• Camera field of view: 118.5° diagonal
• Voice pickup range: 4 metres
• Wireless protocol: IEEE 802.11a/n/ac
• Transmission distance: Up to 10 metres
• Interfaces: HDMI, USB Type-C, and USB-A 3.0
• Operating temperature: 0°C to 40°C

Common Applications

The system suits boardrooms, meeting rooms, training spaces, classrooms, and hybrid offices. Because it supports widely used Unified Communications services, teams can use their preferred compatible meeting software.

Why Choose This Product?

The Fanvil CA400 All-in-One Conference Solution combines essential meeting tools in one coordinated package. Consequently, it reduces cable clutter and deployment time. Its wide-angle camera, far-field microphones, wireless presentation support, and compact design provide practical long-term value for shared meeting spaces.

Frequently Asked Questions

Does the Fanvil CA400 All-in-One Conference Solution require software installation?

The system uses plug-and-play operation without dedicated software or drivers. Users connect the receiver to the display and attach the MS10 to a compatible computer.

What comes with the Fanvil CA400 All-in-One Conference Solution?

The package includes the CM70 camera, MS10 speakerphone, RC10 receiver, remote control, power adapter, HDMI cable, USB cables, H2C adapter, and installation guide.

Can it work with computers without full-featured USB Type-C?

The included H2C adapter provides HDMI and USB connections for computers whose USB Type-C ports lack the required display functions.
