Fanvil CA200 Wireless Conference Kit

Fanvil CA200 Wireless Conference Kit CA200

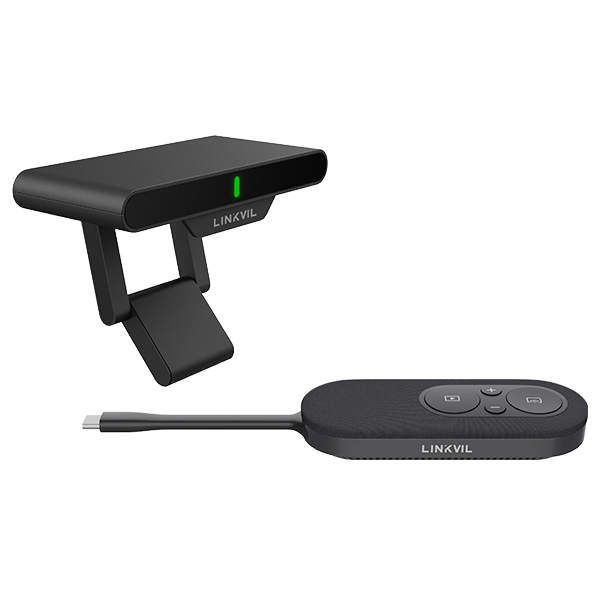

The Fanvil CA200 Wireless Conference Kit is a plug-and-play screen-sharing solution for meeting rooms, offices, schools, and hybrid workspaces. It combines an RC10 receiver hub with a CP20 screen-sharing pod, allowing users to present content without installing software. Moreover, it supports 4K wireless casting, multiple presenters, and wireless access to compatible conference peripherals.

Product Overview

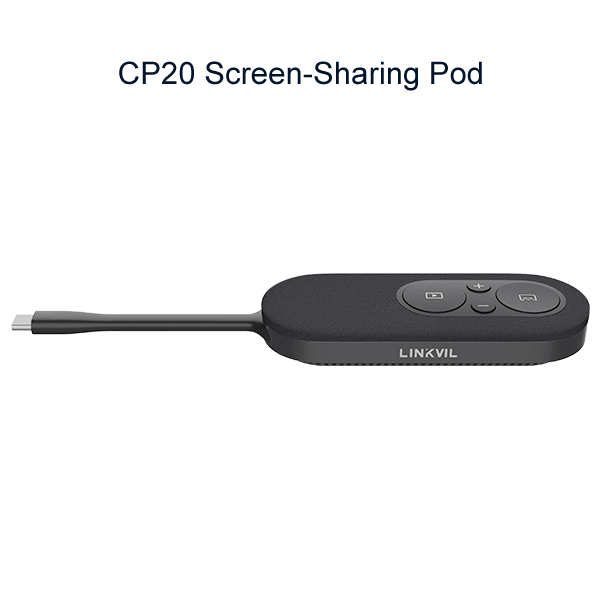

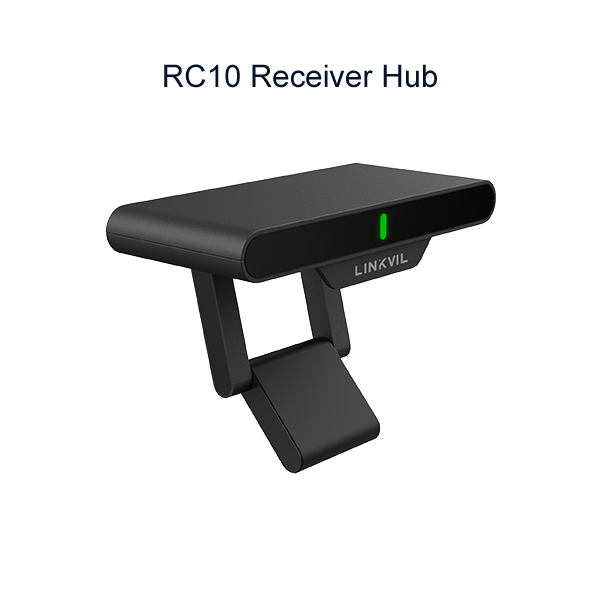

The CA200 connects the RC10 receiver hub to an HDMI-enabled display. Users then connect the CP20 pod to a device with a full-featured Universal Serial Bus Type-C port. Therefore, presentations can begin with one button press.

The system supports mirror and extended desktop modes. In addition, its freeze function lets presenters pause the shared display while continuing to work privately on their device.

Key Features

• Supports wireless screen sharing at up to 4K resolution and 30 frames per second, providing clear presentation content.
• Connects up to four CP20 pods, allowing several presenters to share through one receiver hub.
• Uses plug-and-play operation, so users do not need to install drivers or presentation software.
• Supports Wi-Fi 5 and Wi-Fi 6 on the 5 GHz band for stable wireless communication.
• Uses WPA3-PSK encryption to help protect transmitted meeting content.
• Provides wireless access to compatible USB Video Class cameras, microphones, and speakers.
• Includes screen sharing, volume, and freeze controls directly on the CP20 pod.

Technical Specifications

• Brand: Fanvil
• Model: CA200
• Product type: Wireless conference kit
• Focus keyphrase: Fanvil CA200 Wireless Conference Kit
• Maximum resolution: 4K at 30 frames per second
• Wireless standards: Wi-Fi 5 and Wi-Fi 6
• Frequency band: 5 GHz
• Security: WPA3-PSK
• Transmission distance: Up to 10 metres
• Receiver interfaces: HDMI, USB Type-C power and USB-A 3.0
• CP20 interface: USB Type-C with Power Delivery and DisplayPort Alternate Mode
• Receiver power: 5V DC, 2A
• Operating temperature: -10°C to 40°C

Common Applications

The CA200 suits boardrooms, classrooms, training rooms, shared offices, and presentation spaces. Its compact design also supports mobile teams that need a portable wireless presentation system.

Why Choose This Product?

The Fanvil CA200 Wireless Conference Kit reduces cable clutter and simplifies meeting-room deployment. Furthermore, multi-device support makes presenter changes easier. Its secure wireless connection, 4K output, and peripheral access provide a practical platform for presentations and video meetings.

Frequently Asked Questions

Does the Fanvil CA200 Wireless Conference Kit require presentation software?

The CA200 works without additional software or drivers. Connect the receiver to an HDMI display, plug the CP20 into a compatible full-featured USB Type-C port, and press the sharing button.

Which devices work with the Fanvil CA200 Wireless Conference Kit?

It supports compatible Windows and macOS computers, laptops, tablets, and smartphones equipped with full-featured USB Type-C ports. The connected port must support the required display and power functions.

Can several presenters use one receiver?

One RC10 receiver hub supports up to four paired CP20 screen-sharing pods. Consequently, several presenters can prepare their devices and switch presentations without repeatedly reconnecting one pod.
