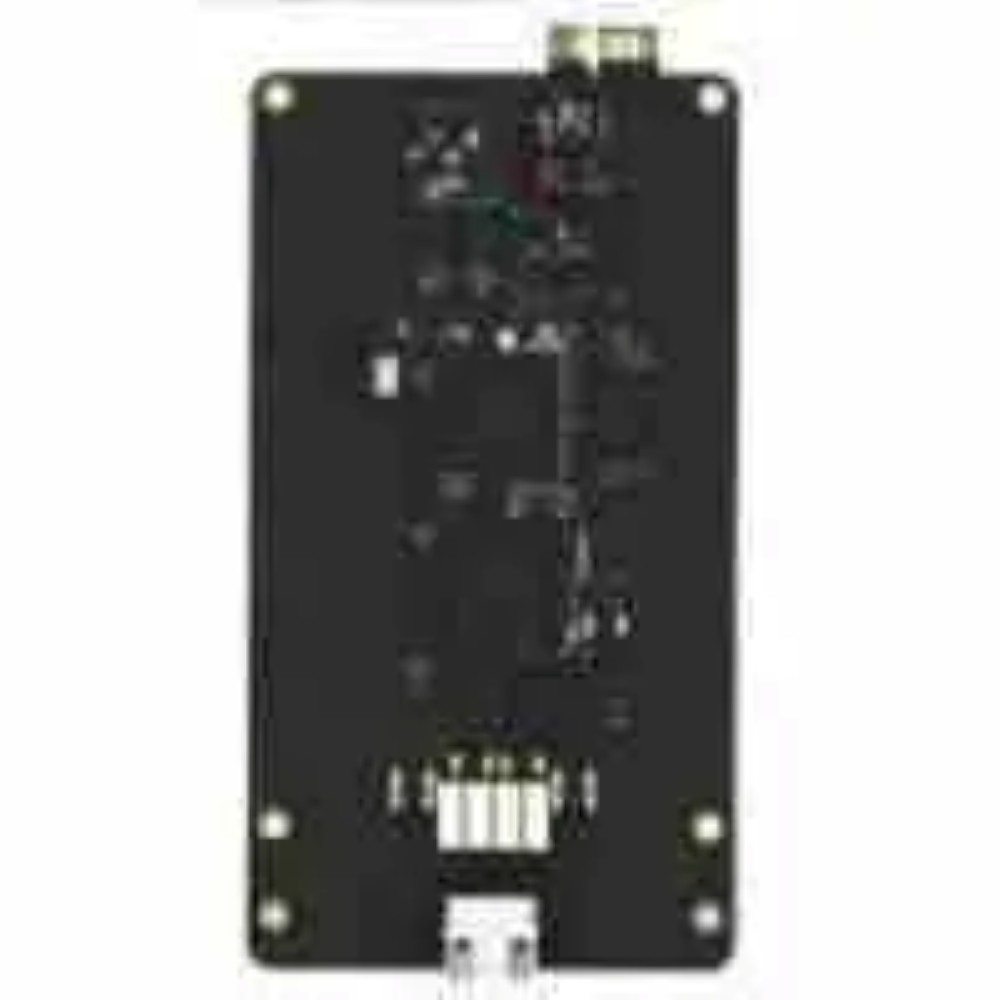

Yeastar EX30 E1 T1 PRI Module

Yeastar EX30 E1 T1 PRI Module

The Yeastar EX30 E1 T1 PRI Module is an internal expansion board for adding one digital telephony interface to a compatible P-Series PBX appliance. It allows suitable systems to connect with an E1, T1, or Primary Rate Interface service. Therefore, organisations can integrate a high-density digital trunk without replacing their supported telephone system or installing a separate external gateway.

Product Overview

The Yeastar EX30 E1 T1 PRI Module includes one onboard digital trunk port. Unlike a telephony expansion board with several empty module slots, the EX30 provides its E1, T1, or PRI interface directly. This design creates a focused connection for compatible digital telephone services.

The module is currently listed for the P560 and P570 appliance models. It installs inside the supported PBX, which keeps the digital connection within the main communication platform. Administrators can then configure suitable call routes through the PBX management system.

Key Features

• Provides one onboard E1, T1, or PRI port for a compatible digital telephone service.
• Adds digital trunk connectivity directly to a supported P-Series PBX appliance.
• Supports the P560 and P570 models listed on the current manufacturer module page.
• Uses an internal expansion format, reducing the need for a separate external digital gateway.
• Allows the PBX to manage incoming calls received through the connected digital trunk.
• Supports configured outbound call routes for authorised extensions and departments.
• Helps organisations combine Internet Protocol calling with a suitable digital carrier connection.
• Fits within the supported appliance, creating a more organised equipment installation.
• Provides a dedicated digital interface rather than empty slots for separate telephony modules.

Technical Specifications

• Brand: Yeastar
• Model: EX30
• Product type: Digital telephony expansion board
• Onboard interfaces: 1
• Interface types: E1, T1, or PRI
• Supported current PBX models: P560 and P570
• Installation type: Internal expansion board
• Primary function: Adds one digital trunk interface to a supported PBX
• P560 expansion capacity: 1 supported expansion board
• P570 expansion capacity: Up to 2 supported expansion boards
• Deployment type: On-premises PBX appliance

Common Applications

The Yeastar EX30 E1 T1 PRI Module suits corporate offices, hotels, hospitals, schools, contact centres, and multi-department organisations. It is designed for deployments that use a compatible digital telephone service. However, the required interface type and service configuration must match the connected carrier and PBX settings.

Why Choose This Product?

The Yeastar EX30 E1 T1 PRI Module adds a dedicated digital trunk while preserving the supported PBX appliance. Its internal design keeps installation compact and centralises call management. Furthermore, the P560 can accept one expansion board, while the P570 supports up to two. This structure gives larger organisations flexibility when planning digital telephone connectivity.

Frequently Asked Questions

Does the EX30 increase the PBX user capacity?

The EX30 adds a digital trunk port rather than users or concurrent-call capacity. The D30 is the expansion module designed to add users and calls.

Can separate telephony modules be installed on the EX30?

The EX30 has one onboard E1, T1, or PRI interface. The EX08 provides four slots for separate telephony modules.

Which PBX appliances currently support the EX30?

The current manufacturer module page lists the P560 and P570 as supported models.

How many EX30 expansion boards can a supported PBX accept?

The P560 allows one expansion board, while the P570 supports up to two expansion boards.
